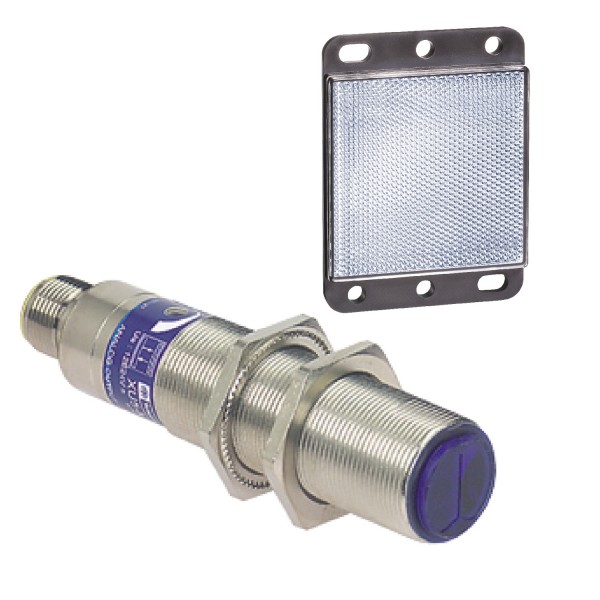

photo-electric sensor - XU9 - polarised - Sn 2m - 24..240VAC/DC

Details

Main
range of product	OsiSense XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XU9
sensor design	Cylindrical M18
detection system	Polarised reflex
material	Metal
line of sight type	Axial
type of output signal	Discrete
supply circuit type	AC/DC
wiring technique	2-wire
discrete output function	1 NC
electrical connection	1 male connector 1/2"20 UNF, 3 pins
product specific application	-
emission	Red polarised reflex
[Sn] nominal sensing distance	2 m polarised reflex need reflector XUZC50

Complementary
enclosure material	Nickel plated brass
lens material	PMMA
maximum sensing distance	3 m
output type	Solid state
add on output	Without
wire insulation material	PvR
status LED	1 LED (yellow) for output state 1 LED (red) for instability
[Us] rated supply voltage	24...240 V AC/DC
supply voltage limits	20…264 V AC/DC
maximum residual current	1.5 mA open state
switching capacity in mA	10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load)
switching frequency	<= 25 Hz
maximum voltage drop	<6 V (closed state)
maximum delay first up	300 ms
maximum delay response	20 ms
maximum delay recovery	20 ms
setting-up	Sensitivity adjustment
diameter	18 mm
length	82 mm
net weight	0.095 kg
kit composition	Reflector XUZC50 Sensor

Environment
product certifications	CE CSA UL
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP67 double insulation conforming to IEC 60529

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
