Details
Characteristics

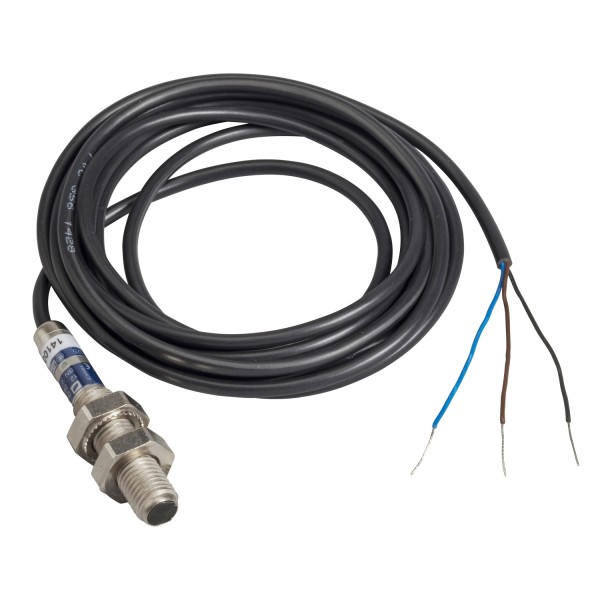

| range of product | OsiSense XU | |
|---|---|---|
| series name | Application assembly | |
| electronic sensor type | Photo-electric sensor transmitter | |
| sensor name | XUA | |
| sensor design | Cylindrical M8 | |
| detection system | Thru beam | |
| material | Metal | |
| line of sight type | Axial | |
| supply circuit type | DC | |
| wiring technique | 3-wire | |
| electrical connection | Cable | |
| cable length | 2 m | |
| emission | Infrared thru beam | |
| [Sn] nominal sensing distance | 2 m thru beam need a receiver |
| enclosure material | Nickel plated brass | |
|---|---|---|
| lens material | PMMA | |
| add on input | Test by emission breaking | |
| cable composition | 3 x 0.14 mm² | |
| wire insulation material | PvR | |
| cable outer diameter | 3.5 mm | |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection | |
| supply voltage limits | 10…30 V DC | |
| current consumption | <= 15 mA | |
| maximum delay first up | 20 ms | |
| setting-up | Without sensitivity adjustment | |
| diameter | 8 mm | |
| length | 48 mm | |
| net weight | 0.05 kg |
| product certifications | CECULus | |
|---|---|---|
| ambient air temperature for operation | -25…55 °C | |
| ambient air temperature for storage | -30…70 °C | |
| vibration resistance | 7 gn, amplitude = +/- 1 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 | |
| IP degree of protection | IP67 conforming to IEC 60529IP65 conforming to IEC 60529 |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information |
| Warranty | 18 months |
|---|
