Details
Characteristics

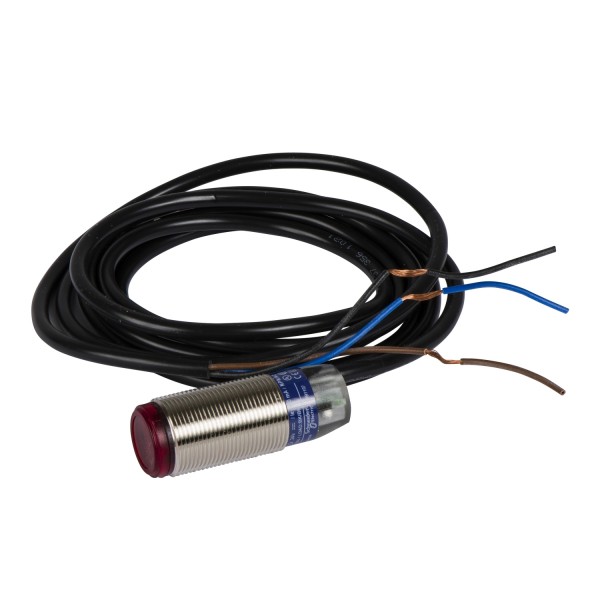

| range of product | OsiSense XU | |
|---|---|---|
| series name | General purpose multimode | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XUB | |
| sensor design | Cylindrical M18 | |
| detection system | Multimode | |
| material | Metal | |
| line of sight type | Axial | |
| type of output signal | Discrete | |
| supply circuit type | DC | |
| wiring technique | 3-wire | |
| discrete output type | NPN | |
| discrete output function | 1 NO or 1 NC programmable | |
| electrical connection | Cable | |
| cable length | 5 m | |
| product specific application | - | |
| emission | Infrared diffuseInfrared diffuse with background suppressionInfrared thru beamRed polarised reflex | |
| [Sn] nominal sensing distance | 3 m polarised reflex need reflector XUZC5020 m thru beam need a transmitter XUB0BKSNL5T0.12 m diffuse with background suppression0.3 m diffuse |
| enclosure material | Nickel plated brass | |
|---|---|---|
| lens material | PMMA | |
| maximum sensing distance | 0.12 m diffuse with background suppression0.4 m diffuse30 m thru beam4.5 m polarised reflex | |
| output type | Solid state | |
| add on output | Without | |
| wire insulation material | PvR | |
| status LED | 1 LED (green) for supply1 LED (red) for instability1 LED (yellow) for output state | |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection | |
| supply voltage limits | 10…36 V DC | |
| switching capacity in mA | <= 100 mA (overload and short-circuit protection) | |
| switching frequency | <= 250 Hz | |
| maximum voltage drop | <1.5 V (closed state) | |
| current consumption | 35 mA no-load | |
| maximum delay first up | 200 ms | |
| maximum delay response | 2 ms | |
| maximum delay recovery | 2 ms | |
| setting-up | Self-teaching | |
| diameter | 18 mm | |
| length | 64 mm |
| product certifications | CEULCSA | |
|---|---|---|
| ambient air temperature for operation | -25…55 °C | |
| ambient air temperature for storage | -40…70 °C | |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 | |
| IP degree of protection | IP65 double insulation conforming to IEC 60529IP67 double insulation conforming to IEC 60529 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 18 months |
|---|
