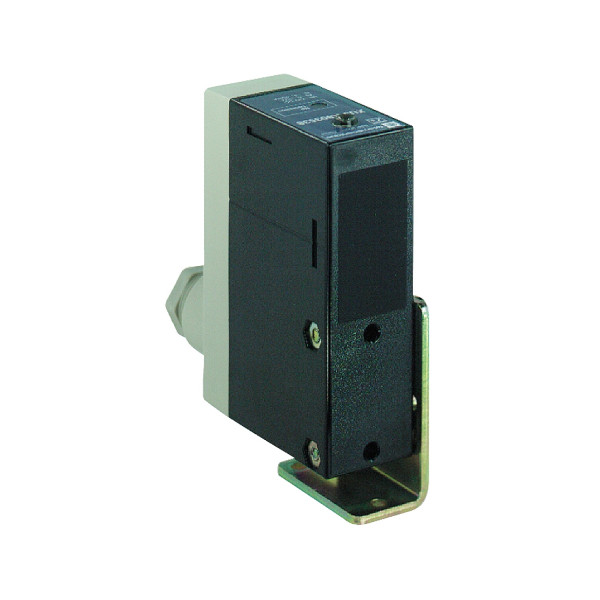

photo-electric sensor - XUJ - diffuse - analog - Sn 0.8m - 12..24VDC

Details

Main
range of product	OsiSense XU
series name	Application material handling
electronic sensor type	Photo-electric sensor
sensor name	XUJ
sensor design	Compact
detection system	Diffuse
material	Plastic
line of sight type	Axial
type of output signal	Analogue
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP
analogue output range	4...20 mA
electrical connection	Screw-clamp terminals, 1 x 2.5...2 x 1.5 mm²
product specific application	-
emission	Infrared diffuse
[Sn] nominal sensing distance	0,2…0,8 m diffuse

Complementary
enclosure material	PEI
maximum sensing distance	0,8 m
output type	Solid state
add on output	With analogue output
wire insulation material	PVC
status LED	1 LED yellow)output state
[Us] rated supply voltage	12...24 V DC
supply voltage limits	20…30 V DC
output voltage	0...10 V DC
switching capacity in mA	<= 100 mA overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<1,5 V closed state)
current consumption	<= 35 mA no-load
maximum delay first up	15 ms
maximum delay response	2 ms
maximum delay recovery	2 ms
setting-up	Without sensitivity adjustment
depth	50 mm
height	50 mm
width	18 mm
net weight	0,07 kg

Environment
product certifications	CE UL CSA
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6
shock resistance	30 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP65 double insulation IEC 60529

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah

Contractual warranty
Garantii	18 months
