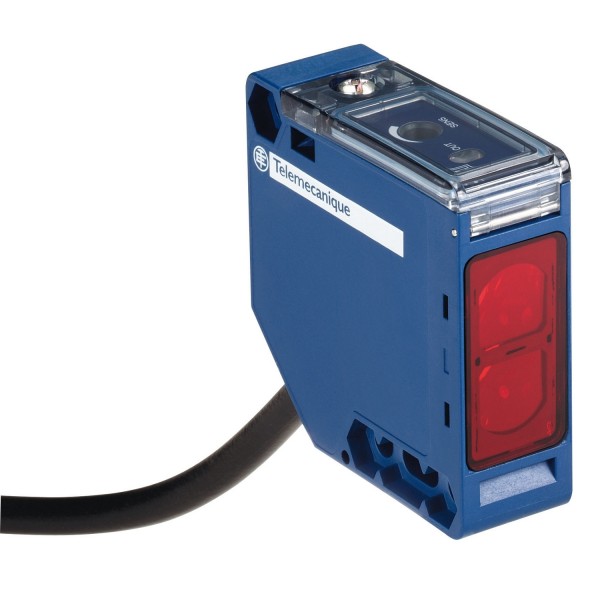

photo-electric sensor - XUK - diffuse - Sn 1m - 24..240VAC/DC

Details

Main
range of product	OsiSense XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Diffuse
material	Plastic
type of output signal	Discrete
supply circuit type	AC/DC
wiring technique	5-wire
discrete output function	1 C/O
electrical connection	Cable
cable length	2 m
product specific application	-
emission	Infrared diffuse
[Sn] nominal sensing distance	1 m diffuse

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	1,5 m diffuse
output type	Relay
cable composition	5 x 0.34 mm²
wire insulation material	PVC
cable outer diameter	6 mm
status LED	1 LED yellow)output state 1 LED green)supply
[Us] rated supply voltage	24...240 V AC/DC
supply voltage limits	20…264 V AC
switching capacity in mA	3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
switching frequency	<= 20 Hz
current consumption	<= 35 mA no-load
maximum power consumption in W	2 W AC
maximum delay first up	60 ms
maximum delay response	25 ms
maximum delay recovery	25 ms
setting-up	Sensitivity adjustment
electrical durability	500000 cycles 1 60 cyc/mn 250 V
depth	50 mm
height	50 mm
width	18 mm
net weight	0,035 kg

Environment
product certifications	Ecolab CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6
shock resistance	30 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP65 double insulation IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
