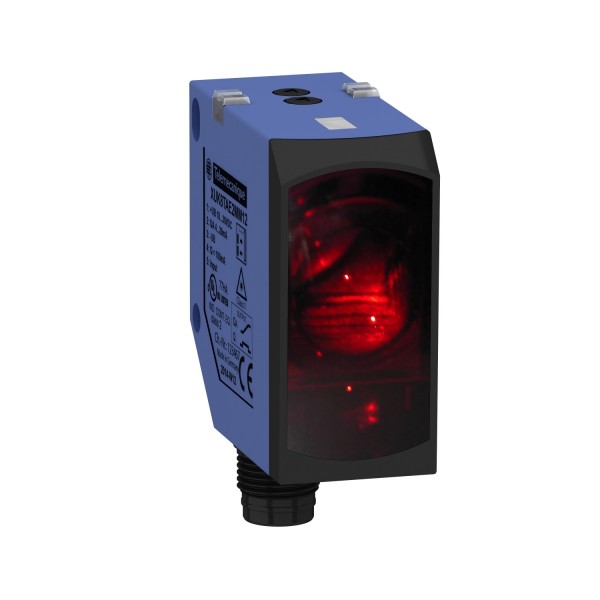

photo-electric sensor - XUK - diffuse Sn 5m 1output auto PNP/NPN 1output 4.20mA

Details

Main
range of product	OsiSense XU
series name	Application assembly Application material handling
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Diffuse distance sensor
material	Plastic
type of output signal	Analogue + discrete
wiring technique	5-wire
discrete output type	PNP or NPN
discrete output function	1 NO or 1 NC programmable
analogue output range	4...20 mA
electrical connection	1 male connector M12, 5 pins
product specific application	Distance measurement on object
emission	Red laser diffuse distance sensor class 1 conforming to IEC 60825-1
[Sn] nominal sensing distance	5 m diffuse distance sensor

Complementary
enclosure material	ABS/PC
lens material	PMMA
maximum sensing distance	5 m diffuse distance sensor
output type	Solid state Analog
add on input	External teach
status LED	1 LED (yellow) for output state 1 LED (green/yellow) for supply on/output state
[Us] rated supply voltage	24 V DC with reverse polarity protection
supply voltage limits	18…30 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 500 Hz
maximum voltage drop	<2 V
current consumption	<= 60 mA no-load
maximum delay first up	300 ms
maximum delay response	1.2 ms
maximum delay recovery	1.2 ms
setting-up	Using teach button or remote teaching
depth	50 mm
height	50 mm
width	23 mm
net weight	0.035 kg

Environment
product certifications	Ecolab CULus CE
ambient air temperature for operation	-20…50 °C, UL certified -40…60 °C
ambient air temperature for storage	-40…80 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP67 conforming to IEC 60529 IP69K conforming to DIN 40050

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
