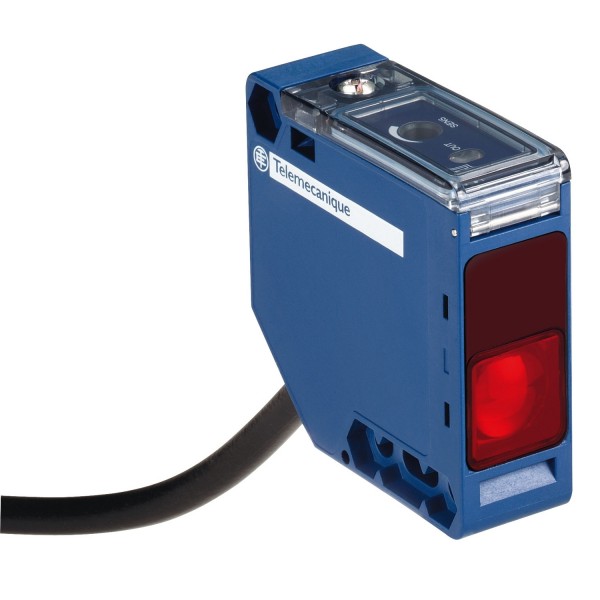

| range of product | OsiSense XU | |
|---|---|---|
| series name | General purpose multimode | |
| electronic sensor type | Photo-electric sensor transmitter | |
| sensor name | XUK | |
| sensor design | Compact 50 x 50 | |
| detection system | Thru beam | |
| material | Plastic | |
| supply circuit type | AC/DC | |
| wiring technique | 3-wire | |
| electrical connection | Cable | |
| cable length | 2 m | |
| product specific application | - | |
| emission | Infrared thru beam | |
| [Sn] nominal sensing distance | 30 m thru beam need a receiver |
| enclosure material | PBT | |
|---|---|---|
| lens material | PMMA | |
| maximum sensing distance | 35 m thru beam | |
| add on input | Test by emission breaking | |
| wire insulation material | PvR | |
| status LED | 1 LED green)supply on | |
| [Us] rated supply voltage | 12...240 V DC24...240 V AC | |
| supply voltage limits | 10…264 V DC20…264 V AC | |
| switching capacity in mA | 3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) | |
| switching frequency | <= 20 Hz | |
| maximum voltage drop | <1,5 V closed state) | |
| time delay range | 0...10 s monostable, on-delay or off-delay (programmable) | |
| setting-up | Without sensitivity adjustment | |
| depth | 50 mm | |
| height | 50 mm | |
| width | 18 mm |
| product certifications | CSACEUL | |
|---|---|---|
| ambient air temperature for operation | -25…55 °C | |
| ambient air temperature for storage | -40…70 °C | |
| vibration resistance | 7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6 | |
| shock resistance | 30 gn 11 ms) IEC 60068-2-27 | |
| IP degree of protection | IP65 double insulation IEC 60529 |
| Jätkusuutliku pakkumise olek | Green Premium toode | |
|---|---|---|
| REACh-määrus | ||
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave | ||
| Keskkonnaalane avaldus | ||
| Ringlusprofiil |
| Garantii | 18 months |
|---|
