Details
Characteristics

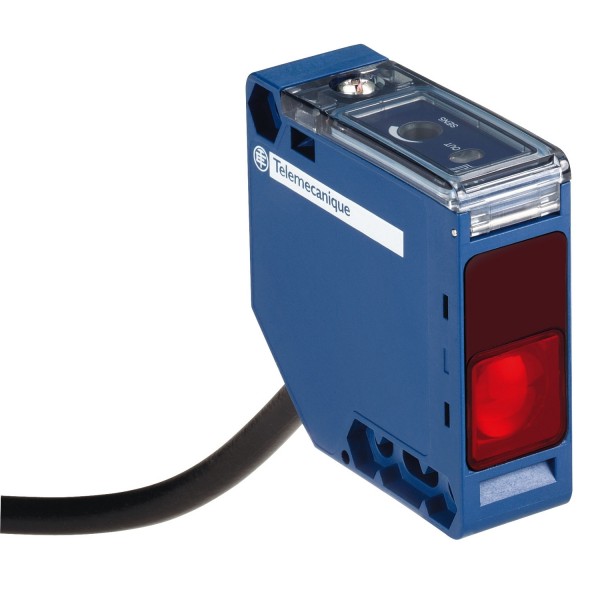

| range of product | OsiSense XU | |
|---|---|---|
| series name | General purpose single mode | |
| electronic sensor type | Photo-electric sensor transmitter | |
| sensor name | XUK | |
| sensor design | Compact 50 x 50 | |
| detection system | Thru beam | |
| material | Plastic | |
| supply circuit type | AC/DC | |
| wiring technique | 2-wire | |
| electrical connection | Cable | |
| cable length | 10 m | |
| product specific application | - | |
| emission | Infrared thru beam | |
| [Sn] nominal sensing distance | 30 m need a receiver | |
| wire insulation material | PVC | |
| [Us] rated supply voltage | 24...240 V AC/DC | |
| switching capacity in mA | 3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) |
| enclosure material | PBT | |
|---|---|---|
| lens material | PMMA | |
| maximum sensing distance | 45 m | |
| add on input | Test by emission breaking | |
| status LED | Supply on: 1 LED (green) | |
| supply voltage limits | 20…264 V AC/DC | |
| switching frequency | <= 250 Hz | |
| maximum voltage drop | <1.5 V (closed state) | |
| current consumption | <= 35 mA no-load | |
| maximum delay first up | 60 ms | |
| maximum delay response | 25 ms | |
| maximum delay recovery | 25 ms | |
| setting-up | Without sensitivity adjustment | |
| depth | 18 mm | |
| height | 50 mm | |
| width | 50 mm |
| product certifications | CECSAUL | |
|---|---|---|
| ambient air temperature for operation | -25…55 °C | |
| ambient air temperature for storage | -40…70 °C | |
| vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 | |
| IP degree of protection | IP65 double insulation conforming to IEC 60529 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 18 months |
|---|
