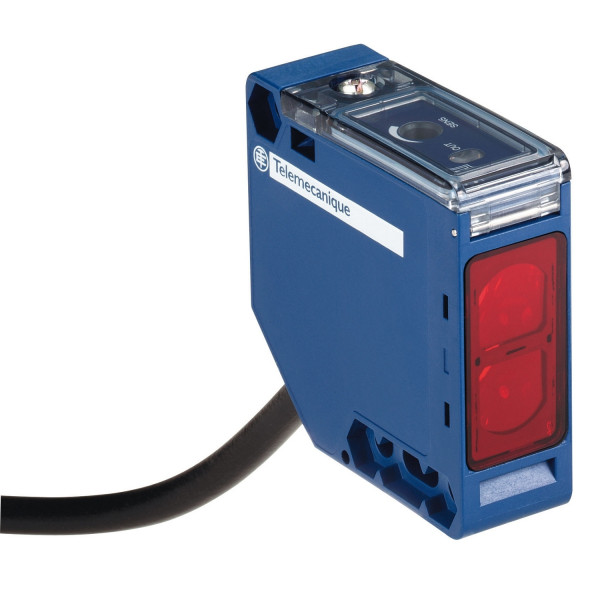

photo-electric sensor - XUK - polarised - Sn 5m - 24..240VAC/DC

Details

Main
range of product	OsiSense XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Polarised reflex
material	Plastic
type of output signal	Discrete
supply circuit type	AC/DC
wiring technique	5-wire
discrete output function	1 C/O
electrical connection	Cable
cable length	5 m
product specific application	-
emission	Red polarised reflex
[Sn] nominal sensing distance	6 m polarised reflex need reflector XUZC50

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	8 m polarised reflex
output type	Relay
wire insulation material	PVC
status LED	1 LED (green) for supply on 1 LED (yellow) for output state
[Us] rated supply voltage	24...240 V AC/DC
supply voltage limits	20…264 V AC 20…264 V DC
switching capacity in mA	3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
switching frequency	<= 20 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	<= 35 mA no-load
maximum power consumption in W	2 W AC
maximum delay first up	60 ms
maximum delay response	25 ms
maximum delay recovery	25 ms
setting-up	Without sensitivity adjustment
electrical durability	500000 cycles, cos f = 1, operating rate <60 cyc/mn at 250 V
depth	50 mm
height	50 mm
width	18 mm
net weight	0.15 kg

Environment
product certifications	Ecolab CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60947-5-2
IP degree of protection	IP65 double insulation conforming to IEC 60529

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
