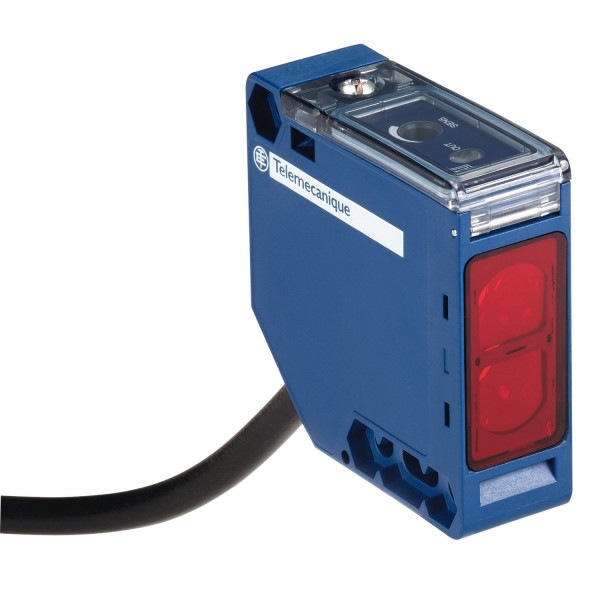

photo-electric sensor - XUK - receiver - Sn 30m - 24..240VAC/DC

Details

Main
range of product	OsiSense XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor receiver
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Thru beam
material	Plastic
type of output signal	Discrete
supply circuit type	AC/DC
wiring technique	5-wire
discrete output function	1 NC + 1 NO
electrical connection	Cable
cable length	10 m
product specific application	-
emission	Infrared thru beam
[Sn] nominal sensing distance	30 m thru beam need a transmitter XUK2ARCNL10T

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	45 m thru beam
output type	Relay
add on output	Without
wire insulation material	PVC
status LED	1 LED (yellow) for output state
[Us] rated supply voltage	24...240 V AC/DC
supply voltage limits	20…264 V AC/DC
switching capacity in mA	3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
switching frequency	<= 20 Hz
maximum voltage drop	<1.5 V (closed state)
maximum power consumption in W	2 W AC
maximum delay first up	60 ms
maximum delay response	25 ms
maximum delay recovery	25 ms
setting-up	Without sensitivity adjustment
electrical durability	500000 cycles, cos f = 1, operating rate <60 cyc/mn at 250 V
depth	50 mm
height	50 mm
width	18 mm

Environment
product certifications	CE UL CSA
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 double insulation conforming to IEC 60529

Offer Sustainability
Sustainable offer status	Green Premium product
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
Environmental Disclosure	Product Environmental Profile
Circularity Profile	End of Life Information

Contractual warranty
Warranty	18 months
