photo-electric sensor - XUK - reflex - kit - Sn 7m - 24..240VAC/DC

Details

Main
range of product	OsiSense XU
series name	Application tertiary sector
electronic sensor type	Photo-electric sensor
product specific application	Access detection
sensor name	XUK
sensor design	Compact 50 x 50
additional information	French/german leaflet
material	Plastic
detection system	Reflex
emission	Infrared reflex
[Sn] nominal sensing distance	7 m with 50 x 50 mm reflector
wiring technique	5-wire
cable length	2 m

Complementary

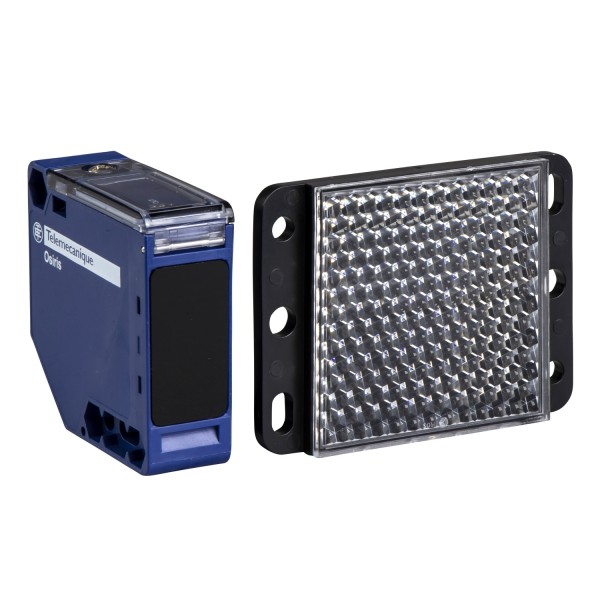

kit composition	Reflex system photo-electric sensor 50 x 50 mm reflector Mounting instructions Fixing bracket
enclosure material	PBT
lens material	PMMA
type of output signal	Discrete
output type	Relay
discrete output type	1 C/O
output function governance	Light
electrical connection	Cable
wire insulation material	PVC
status LED	Output state: 1 LED
supply circuit type	AC/DC
[Us] rated supply voltage	24...240 V AC/DC with reverse polarity protection
supply voltage limits	20…264 V AC/DC
output voltage	250 V AC
switching capacity in mA	3 A
switching frequency	< 20 Hz
maximum power consumption in W	2 W
maximum delay first up	60 ms
maximum delay response	25 ms
maximum delay recovery	25 ms
net weight	0.3 kg

Environment
product certifications	CE CSA UL
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 conforming to IEC 60529 (double insulation)

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Compliant EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
WEEE	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
