photo-electric sensor - XUK - reflex - kit - Sn 7m - 24..240VAC/DC

Details

Main
range of product	OsiSense XU
series name	Application tertiary sector
electronic sensor type	Photo-electric sensor
product specific application	Access detection
sensor name	XUK
sensor design	Compact 50 x 50
additional information	French/english leaflet
material	Plastic
detection system	Reflex
emission	Infrared reflex
[Sn] nominal sensing distance	7 m with 50 x 50 mm reflector
wiring technique	5-wire
cable length	2 m

Complementary

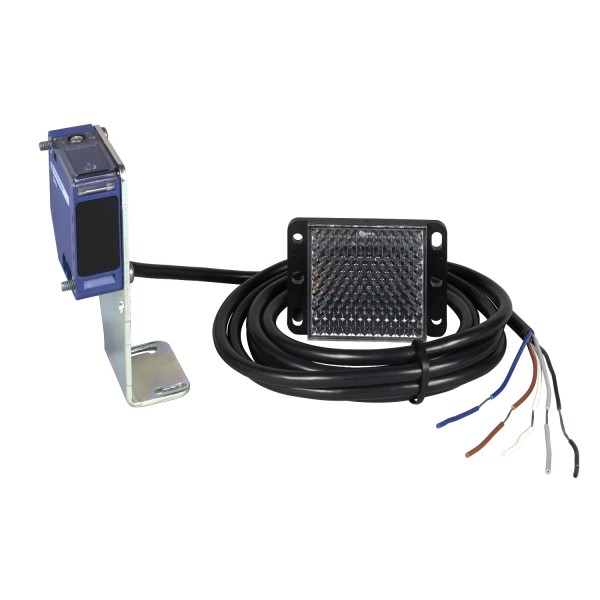

kit composition	Reflex system photo-electric sensor Fixing bracket Mounting instructions 50 x 50 mm reflector
enclosure material	PBT
lens material	PMMA
type of output signal	Discrete
output type	Relay
discrete output type	1 C/O
output function governance	Light
electrical connection	Cable
wire insulation material	PVC
status LED	Output state 1 LED
supply circuit type	AC/DC
[Us] rated supply voltage	24...240 V AC/DC reverse polarity protection
supply voltage limits	20…264 V AC/DC
output voltage	250 V AC
switching capacity in mA	3 A
switching frequency	< 20 Hz
maximum power consumption in W	2 W
maximum delay first up	60 ms
maximum delay response	25 ms
maximum delay recovery	25 ms
net weight	0,3 kg

Environment
product certifications	UL CSA CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6
shock resistance	30 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP65 IEC 60529 double insulation)

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Vastavus ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave
WEEE	Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.

Contractual warranty
Garantii	18 months
