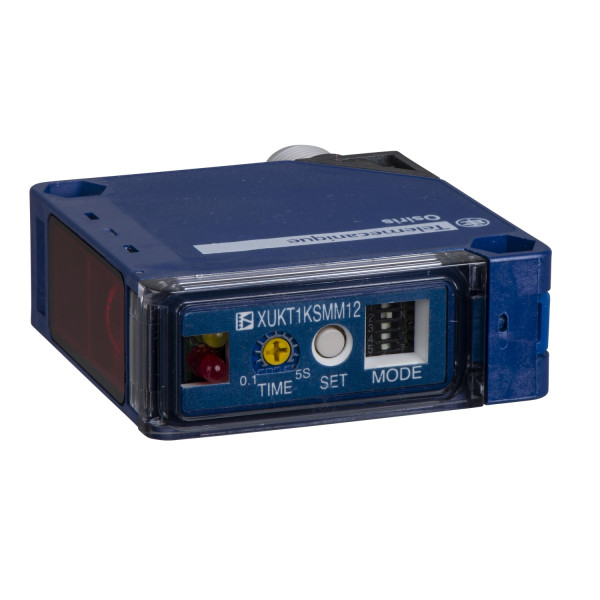

photo-electric sensor - XUKT - reflex - Sn 1.5m - 12..24VDC

Details

Main
range of product	OsiSense XU
series name	Application packaging
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Reflex
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP or NPN
discrete output function	1 NO or 1 NC programmable
electrical connection	Cable
cable length	2 m
product specific application	Detection of transparent object
emission	Red reflex
[Sn] nominal sensing distance	1,5 m reflex need reflector XUZC50

Complementary
enclosure material	PC
lens material	PMMA
output type	Solid state
output function governance	Dark
add on output	Without
cable composition	2 x 0.34 mm²
wire insulation material	PVC
cable outer diameter	6 mm
status LED	1 LEDoutput state
[Us] rated supply voltage	12...24 V DC reverse polarity protection
supply voltage limits	10…30 V AC/DC
switching capacity in mA	<= 100 mA overload and short-circuit protection)
switching frequency	<= 1.5 kHz
maximum voltage drop	<2 V closed state)
current consumption	<= 35 mA no-load
time delay range	0.1...5 s monostable, on-delay or off-delay (programmable)
maximum delay first up	80 ms
maximum delay response	0,3 ms
maximum delay recovery	0,3 ms
setting-up	Sensitivity adjustment by potentiometer
depth	50 mm
height	50 mm
width	18 mm
net weight	0,035 kg
kit composition	Bracket XULZ41 Sensor

Environment
product certifications	CE UL CSA
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn +/- 2 mm 10…55 Hz) IEC 60068-2-6
shock resistance	20 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP65 IEC 60529 IP651 NF C 20-010

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
