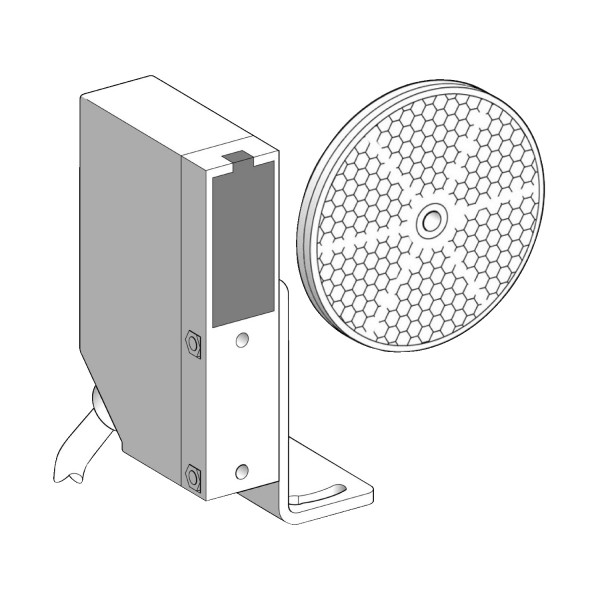

photo-electric sensor - XUL - reflex - Sn 6m - 12..24VDC

Details

Main
range of product	OsiSense XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XUL
sensor design	Compact
detection system	Reflex
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	NPN
discrete output function	1 NO or 1 NC programmable
electrical connection	Cable
cable length	2 m
product specific application	-
emission	Infrared reflex
[Sn] nominal sensing distance	6 m reflex need reflector XUZC80

Complementary
enclosure material	ABS
lens material	PMMA
maximum sensing distance	9 m with reflector Ø 80 mm
output type	Solid state
output function governance	Light or dark programmable
add on output	Without
cable composition	4 x 0.34 mm²
wire insulation material	PVC
cable outer diameter	6 mm
status LED	1 LED for output state
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
supply voltage limits	10…30 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	<= 35 mA no-load
maximum delay first up	15 ms
maximum delay response	2 ms
maximum delay recovery	2 ms
setting-up	Without sensitivity adjustment
depth	35 mm
height	70 mm
width	18 mm
net weight	0.195 kg
kit composition	Sensor Bracket XULZ41

Environment
product certifications	CSA UR CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn, amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	20 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP67 conforming to IEC 60529 IP671 conforming to NF C 20-010

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Not applicable, out of EU RoHS legal scope

Contractual warranty
Warranty	18 months
