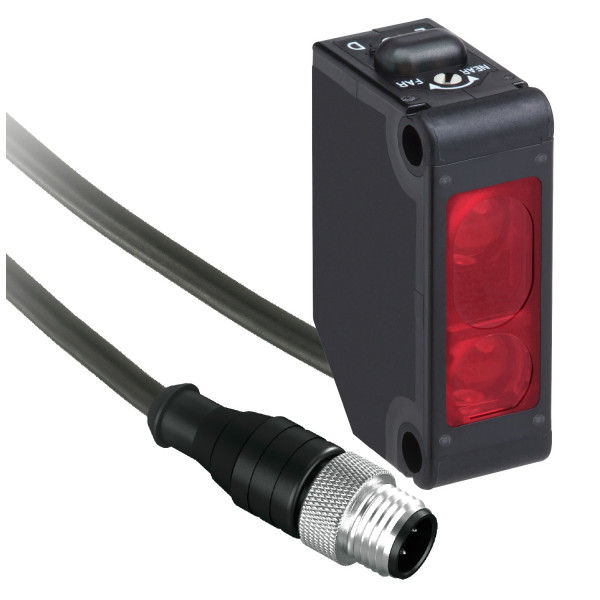

photo-electric sensor - XUM - BGS - Sn 0.3m - 12..24VDC - M12 - cable 0.3m

Ülevaaded: 0

Tootekood: XUM8APCNL03M12

Quick Overview

Saadavus: Tellimisel

74,24 € (ilma KM-ta)

Details

Main
range of product
OsiSense XU
series name
General purpose single mode
electronic sensor type
Photo-electric sensor
sensor name
XUM
sensor design
Miniature
detection system
Diffuse with background suppression
material
Plastic
type of output signal
Discrete
supply circuit type
DC
wiring technique
3-wire
discrete output type
PNP
discrete output function
1 NO or 1 NC programmable
electrical connection
Remote male connector M12, 4 pins
cable length
0.3 m
product specific application
-
emission
Red diffuse with background suppression
[Sn] nominal sensing distance
0.3 m diffuse with background suppression
Complementary
enclosure material
PBT
lens material
PC
maximum sensing distance
0.3 m diffuse with background suppression
output type
Solid state
wire insulation material
PVC
status LED
1 LED (green) for instability
1 LED (orange) for output state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
supply voltage limits
10…30 V DC
switching capacity in mA
<= 100 mA (overload and short-circuit protection)
maximum voltage drop
<2 V (closed state)
current consumption
<= 20 mA no-load
maximum delay first up
100 ms
maximum delay response
1 ms
setting-up
Sensitivity adjustment by potentiometer
depth
20 mm
height
33 mm
length
11 mm
width
11 mm
net weight
0.02 kg
Environment
product certifications
CE
CURus
ambient air temperature for operation
-25…55 °C
ambient air temperature for storage
-30…70 °C
immunity to ambient light
3000 lux natural light
3000 lux incandescent light
vibration resistance
20 gn, amplitude = +/- 1.5 mm (f = 10…500 Hz) conforming to IEC 60068-2-6
shock resistance
50 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Offer Sustainability
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
Contractual warranty
Warranty
18 months
