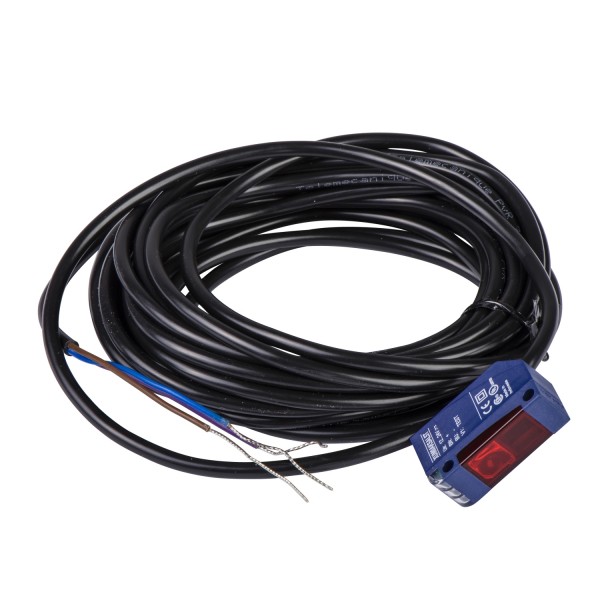

photo-electric sensor - XUM - multi - Sn 0..10m - 12..24VDC

Details

Main
range of product	OsiSense XU
series name	General purpose multimode
electronic sensor type	Photo-electric sensor
sensor name	XUM
sensor design	Miniature
detection system	Multimode
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP
discrete output function	1 NO or 1 NC programmable
electrical connection	Cable
cable length	2 m
product specific application	-
emission	Infrared diffuse Infrared diffuse with background suppression Infrared thru beam Red polarised reflex
[Sn] nominal sensing distance	3 m polarised reflex need reflector XUZC50 10 m thru beam need a transmitter XUM0AKSAL2T 0,1 m diffuse with background suppression 0,4 m diffuse

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	14 m thru beam 4 m polarised reflex 0,1 m diffuse with background suppression 0,55 m diffuse
output type	Solid state
add on output	With alarm output, 50 mA
wire insulation material	PvR
status LED	1 LED green)supply 1 LED red)instability 1 LED yellow)output state
[Us] rated supply voltage	12...24 V DC reverse polarity protection
switching capacity in mA	<= 100 mA overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<1,5 V closed state)
current consumption	35 mA no-load
maximum delay first up	100 ms
maximum delay response	2 ms
maximum delay recovery	2 ms
setting-up	Self-teaching
depth	20 mm
height	34 mm
width	12 mm
net weight	0,05 kg

Environment
product certifications	UL CE CSA
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6
shock resistance	30 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP65 double insulation IEC 60529 IP67 double insulation IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
