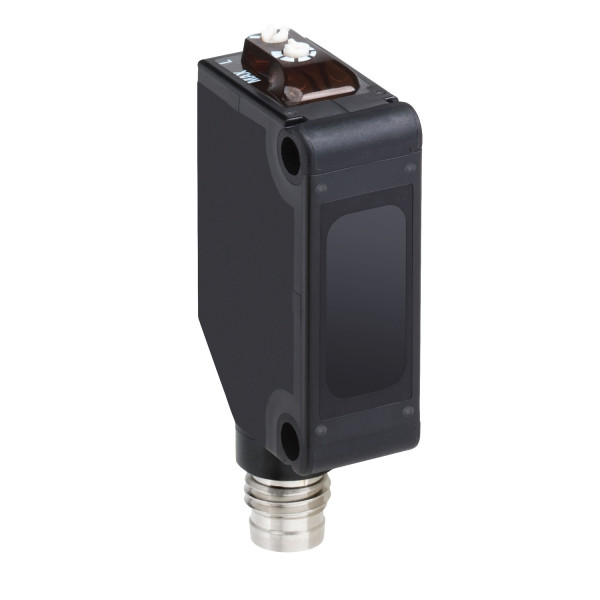

photo-electric sensor - XUM - reflex - Sn 2m - 12..24VDC

Details

Main
range of product	OsiSense XU
series name	Application packaging
electronic sensor type	Photo-electric sensor
sensor name	XUM
sensor design	Miniature
detection system	Reflex
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP
discrete output function	1 NO or 1 NC programmable
electrical connection	1 male connector M8, 4 pins
product specific application	Detection of transparent object
emission	Infrared reflex
[Sn] nominal sensing distance	2 m reflex need reflector XUZC50 1 m reflex need reflector XUZC50CR

Complementary
enclosure material	PBT
lens material	PC
output type	Solid state
cable entry	1 entry for M16 x 1.5 cable gland, cable outer diameter: 7…10 mm
status LED	1 LED (yellow) for output state 1 LED (green) for supply
[Us] rated supply voltage	12...24 V DC
supply voltage limits	10…30 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	<= 35 mA no-load
maximum delay first up	15 ms
maximum delay response	2 ms
maximum delay recovery	2 ms
setting-up	Sensitivity adjustment
depth	77 mm
height	92 mm
length	11 mm
width	31 mm
net weight	0.2 kg

Environment
product certifications	CSA UL CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
immunity to ambient light	3000 lux natural light 3000 lux incandescent light
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP67 double insulation conforming to IEC 60529 IP65 double insulation conforming to IEC 60529

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
