  • photo-electric sensor - XUM - thru beam - Sn 15m - 12..24VDC - cable 2m

Product was successfully added to your shopping cart.

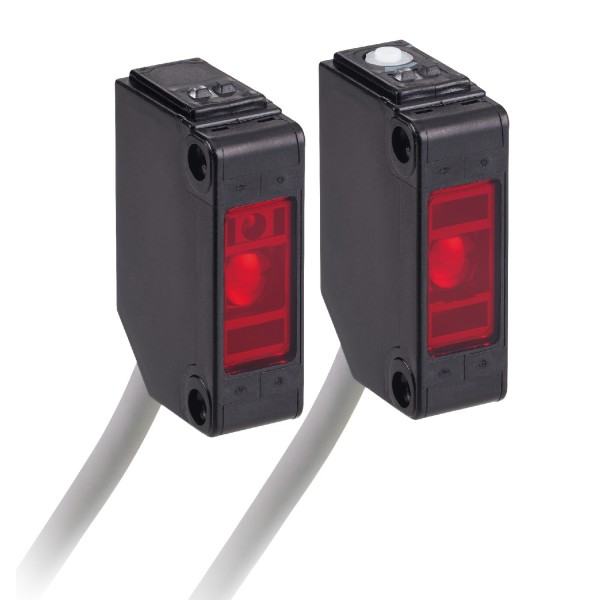

photo-electric sensor - XUM - thru beam - Sn 15m - 12..24VDC - cable 2m

Ülevaaded: 0

Tootekood: XUM2ANCNL2

Quick Overview

Saadavus: Ei saa enam tellida

87,66 € (ilma KM-ta)

Details

Main
range of product
OsiSense XU
series name
General purpose single mode
electronic sensor type
Photo-electric sensor
sensor name
XUM
sensor design
Miniature
detection system
Thru beam
material
Plastic
type of output signal
Discrete
supply circuit type
DC
wiring technique
3-wire
discrete output type
NPN
discrete output function
1 NO or 1 NC programmable
electrical connection
Cable
cable length
2 m
product specific application
-
emission
Red thru beam
[Sn] nominal sensing distance
15 m thru beam
Complementary
enclosure material
PBT
lens material
PMMA
output type
Solid state
wire insulation material
PVC
status LED
1 LED green)instability and receiver/supply on
1 LED orange)transmitter/supply on
1 LED red)receiver/indicator light
[Us] rated supply voltage
12...24 V DC
switching capacity in mA
<= 100 mA overload and short-circuit protection)
switching frequency
<= 1000 Hz
maximum voltage drop
<3 V closed state)
current consumption
11...13 mA no-load
maximum delay first up
100 ms
maximum delay response
0,5 ms
maximum delay recovery
0,5 ms
setting-up
Sensitivity adjustment by potentiometer
depth
20 mm
height
34 mm
width
11 mm
net weight
0,119 kg
kit composition
Transmitter + receiver XUM2AKCNL2T + XUM2APCNL2R
Environment
product certifications
CE
CULus
CTick
ambient air temperature for operation
-30…60 °C
ambient air temperature for storage
-40…70 °C
vibration resistance
7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6
shock resistance
30 gn 11 ms) IEC 60068-2-27
IP degree of protection
IP67 IEC 60529
IP65 IEC 60529
Offer Sustainability
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Contractual warranty
Garantii
18 months
