Details

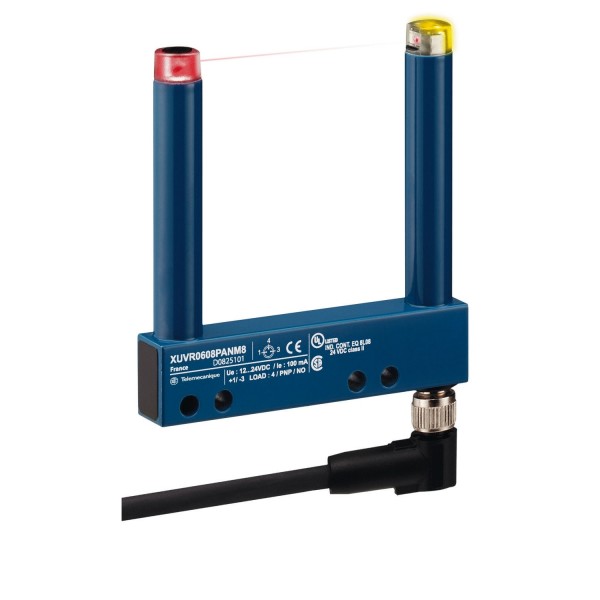

Characteristics
| range of product | OsiSense XU | |
|---|---|---|
| series name | General purpose | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XUVR | |
| sensor design | Fork | |
| detection system | Thru beam | |
| emission | Red LED, modulated | |
| passage width | 80 mm | |
| passage depth | 60 mm | |
| material | Metal/plastic | |
| supply circuit type | DC | |
| wiring technique | 3-wire | |
| discrete output type | PNP | |
| discrete output function | 1 NC | |
| electrical connection | 1 male connector M8, 3 pins | |
| product specific application | Detection on small conveyor | |
| [Sn] nominal sensing distance | 80 mm |
| enclosure material | Painted aluminium and polyamide/glass | |
|---|---|---|
| spot diameter | 0.8 mm | |
| type of output signal | Discrete | |
| output type | Solid state | |
| status LED | Output state: 1 LED (yellow) | |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection | |
| supply voltage limits | 10…30 V DC | |
| switching capacity in mA | 100 mA (overload and short-circuit protection) | |
| switching frequency | 4000 Hz | |
| maximum voltage drop | <1.5 V (closed state) | |
| current consumption | < 20 mA no-load | |
| net weight | 0.19 kg |
| product certifications | ULCSACE | |
|---|---|---|
| ambient air temperature for operation | -10…60 °C | |
| ambient air temperature for storage | -40…80 °C | |
| immunity to ambient light | 10000 lux natural light5000 lux incandescent bulb | |
| vibration resistance | 7 gn, amplitude = +/- 0.75 mm (f = 10…55 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 | |
| IP degree of protection | IP65IP67 |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information |
| Warranty | 18 months |
|---|
