Details
Müüdavad tooted

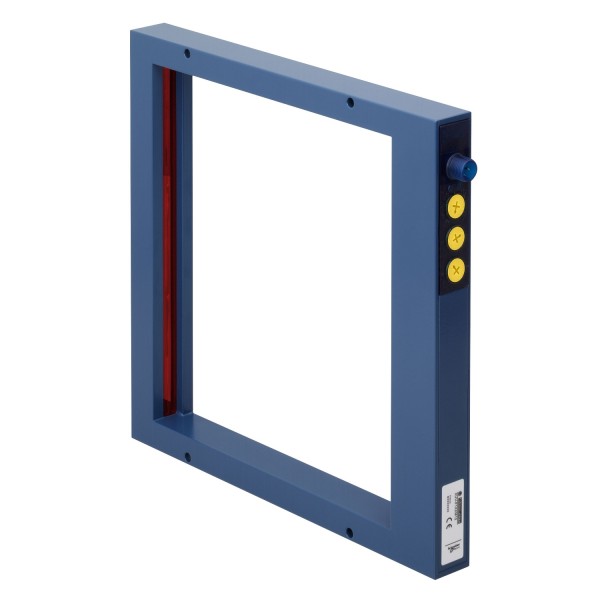

| range of product | OsiSense XU | |
|---|---|---|
| series name | Application material handling | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XUY | |
| sensor design | Frame | |
| detection system | Thru beam | |
| emission | Infrared | |
| way dimensions of optical frame | 200 x 180 mm | |
| material | Metal | |
| supply circuit type | DC | |
| wiring technique | 4-wire | |
| discrete output type | PNP or NPN | |
| discrete output function | 1 NO or 1 NC programmable | |
| electrical connection | 1 male connector M12, 4 pins | |
| product specific application | Dynamic detection of passage of objectsStatic detection of passage of objects | |
| minimum object diameter for detection | Dynamic mode 10 mm 0,1…70 m/s)Static mode 15 mm |
| enclosure material | Painted aluminium | |
|---|---|---|
| lens material | Altuglass | |
| type of output signal | Discrete | |
| output type | Solid state | |
| status LED | Alarm 1 LED red)Output state 1 LED amber) | |
| [Us] rated supply voltage | 24 V DC reverse polarity protection | |
| supply voltage limits | 18…30 V DC | |
| switching capacity in mA | <= 100 mA overload and short-circuit protection) | |
| switching frequency | > 5000 Hz | |
| maximum voltage drop | <2 V closed state) | |
| current consumption | <= 150 mA no-load | |
| time delay range | 0...5 s off-delay | |
| maximum delay first up | 100 ms | |
| maximum delay recovery | 0,1 ms | |
| setting-up | Sensitivity adjustment with potentiometer | |
| depth | 25 mm | |
| height | 230 mm | |
| width | 265 mm | |
| net weight | 1,2 kg |
| product certifications | CECULus | |
|---|---|---|
| ambient air temperature for operation | 0…60 °C | |
| ambient air temperature for storage | -20…80 °C | |
| immunity to ambient light | 3000 lux incandescent bulb10000 lux natural light | |
| vibration resistance | 25 gn +/- 2 mm 10…55 Hz) IEC 60068-2-6 | |
| shock resistance | 30 gn 11 ms) IEC 60068-2-27 | |
| IP degree of protection | IP65 IEC 60529 |
| REACh-määrus | ||
|---|---|---|
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave |
| Garantii | 18 months |
|---|
