Details
Characteristics

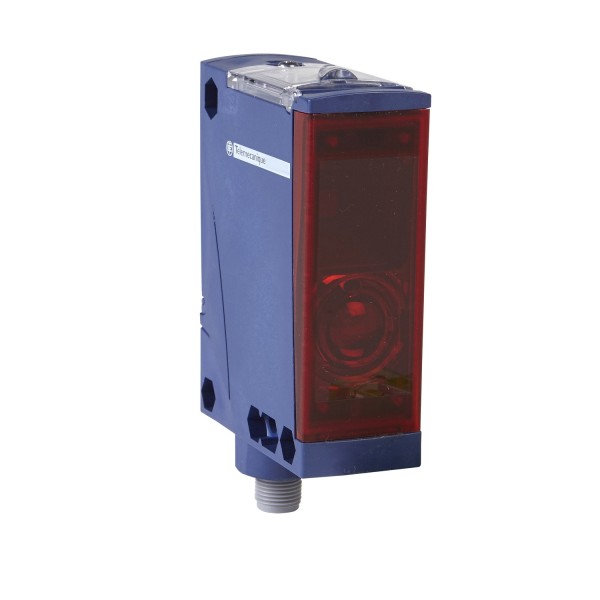

| range of product | OsiSense XU | |
|---|---|---|
| series name | General purpose single mode | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XUX | |
| sensor design | Compact 92 x 71 | |
| detection system | Diffuse with background suppression | |
| material | Plastic | |
| type of output signal | Discrete | |
| supply circuit type | AC/DC | |
| wiring technique | 5-wire | |
| discrete output function | 1 NO or 1 NC programmable | |
| electrical connection | Screw-clamp terminals, 1 x 0.75...1 x 1.5 mm² | |
| product specific application | Long sensing distance with high accuracy | |
| emission | Infrared | |
| [Sn] nominal sensing distance | 2 m |
| enclosure material | PC | |
|---|---|---|
| lens material | PMMA | |
| output type | Relay | |
| cable entry | ISO 16 cable gland, cable outer diameter: 7…10 mm | |
| status LED | Supply on: 1 LED (green)Instability: 1 LED (red)Output state: 1 LED (yellow) | |
| [Us] rated supply voltage | 24...240 V AC/DC | |
| supply voltage limits | 20…264 V AC/DC | |
| switching frequency | 20 Hz | |
| maximum voltage drop | <1.5 V (closed state) | |
| current consumption | 35 mA no-load | |
| time delay range | 0.02...15 s monostable, on delay or off-delay delay | |
| maximum delay first up | 200 ms | |
| maximum delay response | 25 ms | |
| maximum delay recovery | 25 ms | |
| electrical durability | 500000 cycles, switching capacity: 0.5 A, cos f = 0.4500000 cycles, switching capacity: 3 A, cos f = 1 | |
| net weight | 0.2 kg |
| product certifications | CECSAUL | |
|---|---|---|
| ambient air temperature for operation | -25…55 °C | |
| ambient air temperature for storage | -40…70 °C | |
| vibration resistance | 7 gn (f = 10…55 Hz) conforming to IEC 60068-2-6 | |
| shock resistance | 10 gn (duration = 11 ms) conforming to IEC 60068-2-27 | |
| IP degree of protection | IP30 conforming to IEC 60529 (with cover open)IP65 conforming to IEC 60529 (double insulation)IP67 conforming to IEC 60529 (double insulation) |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty | 18 months |
|---|
