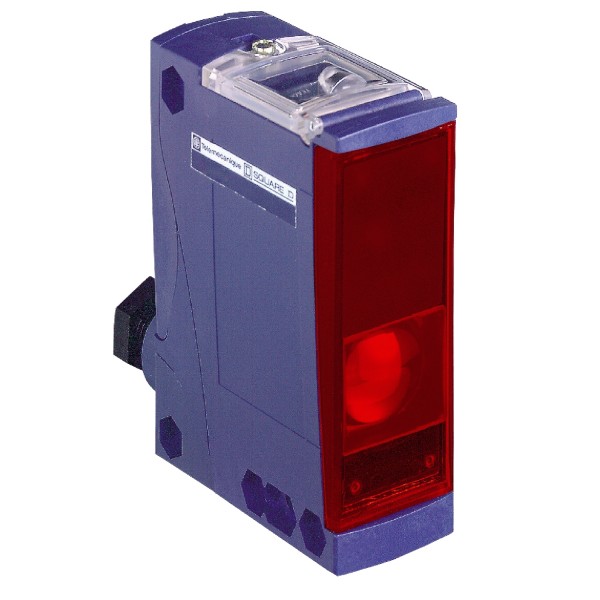

photo-electric sensor - XUX - emitter - 24..240VAC/DC

Details

Main
range of product	OsiSense XU
series name	General purpose multimode
electronic sensor type	Photo-electric sensor transmitter
sensor name	XUX
sensor design	Compact 92 x 71
detection system	Thru beam
material	Plastic
supply circuit type	AC/DC
wiring technique	3-wire
electrical connection	Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
product specific application	-
emission	Infrared thru beam
[Sn] nominal sensing distance	40 m thru beam need a receiver

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	60 m thru beam
add on input	Test by emission breaking
cable entry	1 entry for M16 x 1.5 cable gland 7…10 mm
status LED	1 LED green)supply on
[Us] rated supply voltage	24...240 V AC/DC
supply voltage limits	20…264 V AC/DC
switching capacity in mA	0.5 A cos φ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V) 3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)
switching frequency	<= 20 Hz
maximum voltage drop	<1,5 V closed state)
current consumption	20 mA no-load
time delay range	0.02...15 s monostable, on-delay or off-delay (programmable)
maximum delay first up	200 ms
maximum delay response	25 ms
maximum delay recovery	25 ms
setting-up	Without sensitivity adjustment
electrical durability	500000 cycles 0,4 500 cyc/mn 500000 cycles 1 3000 cyc/mn
depth	77 mm
height	92 mm
width	31 mm
net weight	0,2 kg

Environment
product certifications	UL CSA CE
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6
shock resistance	30 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP65 double insulation IEC 60529 IP67 double insulation IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
