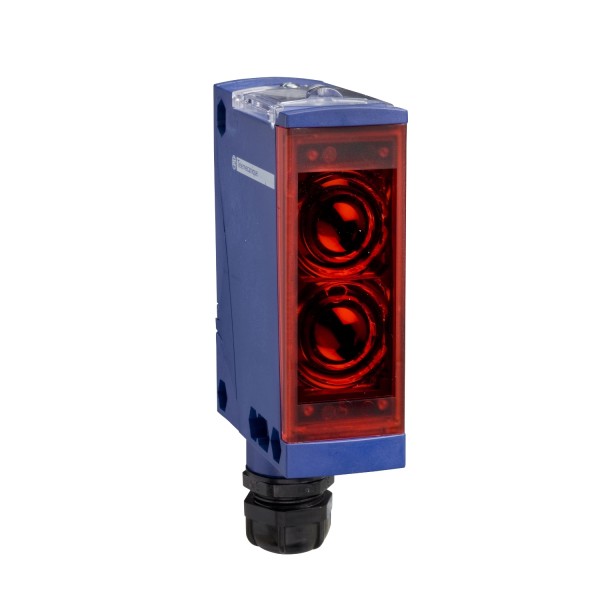

photo-electric sensor - XUX - polarised - Sn 11m - 12..24VDC

Details

Main
range of product	OsiSense XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XUX
sensor design	Compact 92 x 71
detection system	Polarised reflex
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP
discrete output function	1 NC
electrical connection	Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
product specific application	-
emission	Red polarised reflex
[Sn] nominal sensing distance	11 m polarised reflex need reflector XUZC50

Complementary
enclosure material	PBT
lens material	PMMA
maximum sensing distance	15 m polarised reflex
output type	Relay
cable entry	1 entry for M16 x 1.5 cable gland 7…10 mm
status LED	1 LED yellow)output state 1 LED red)instability 1 LED green)supply
[Us] rated supply voltage	24...240 V AC/DC
switching capacity in mA	3 A cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V) 0.5 A cos φ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V)
switching frequency	<= 20 Hz
maximum voltage drop	<1,5 V closed state)
current consumption	<= 35 mA no-load
maximum power consumption in W	2 W AC/DC
maximum delay first up	60 ms
maximum delay response	25 ms
maximum delay recovery	25 ms
setting-up	Sensitivity adjustment
electrical durability	500000 cycles 1 60 cyc/mn 250 V 500000 cycles 0,4 60 cyc/mn 250 V
depth	77 mm
height	92 mm
width	31 mm
net weight	0,2 kg

Environment
product certifications	UL CE CSA
ambient air temperature for operation	-25…55 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6
shock resistance	30 gn 11 ms) IEC 60068-2-27
IP degree of protection	IP67 double insulation IEC 60529 IP65 double insulation IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
