Details
Müüdavad tooted

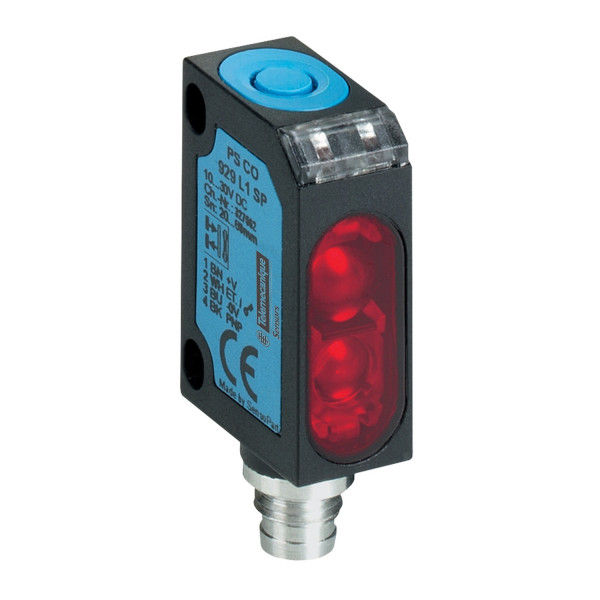

| range of product | OsiSense XU | |
|---|---|---|
| series name | Application assembly | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XUY | |
| sensor design | Miniature | |
| detection system | Diffuse with background suppression | |
| material | Plastic | |
| type of output signal | Discrete | |
| supply circuit type | DC | |
| wiring technique | 3-wire | |
| discrete output type | PNP | |
| discrete output function | 1 NO or 1 NC programmable | |
| electrical connection | 1 male connector M8, 4 pins | |
| product specific application | Monitoring of small parts on production machineSetting up of sensors | |
| emission | Red LED, pulsed - class 2 IEC 825-1 | |
| [Sn] nominal sensing distance | 0,01…0,06 m |
| enclosure material | ABS | |
|---|---|---|
| pulse frequency | 5 kHz | |
| spot diameter | > 0.3...0.4 mm | |
| output type | Solid state | |
| status LED | Supply on/dirty 1 LED green)Output state 1 LED yellow) | |
| [Us] rated supply voltage | 12...24 V DC reverse polarity protection | |
| supply voltage limits | 10…30 V DC | |
| switching capacity in mA | 100 mA overload and short-circuit protection) | |
| switching frequency | 1000 Hz | |
| maximum voltage drop | <2,4 V closed state) | |
| current consumption | < 30 mA no-load | |
| maximum delay response | 3 µs | |
| setting-up | Using teach button or remote teaching | |
| net weight | 0,056 kg |
| product certifications | CULusCE | |
|---|---|---|
| ambient air temperature for operation | -20…60 °C | |
| ambient air temperature for storage | -20…80 °C | |
| immunity to ambient light | 5000 lux | |
| vibration resistance | 7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6 | |
| shock resistance | 30 gn 11 ms) IEC 60068-2-27 | |
| IP degree of protection | IP67 IEC 60529 |
| REACh-määrus | ||
|---|---|---|
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave |
| Garantii | 18 months |
|---|
