Details
Müüdavad tooted

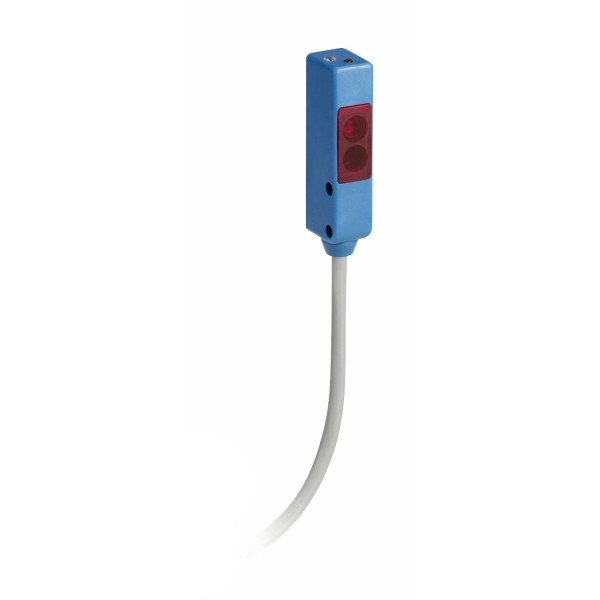

| range of product | OsiSense XU | |
|---|---|---|
| series name | Application | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XUY | |
| sensor design | Miniature | |
| detection system | Thru beam | |
| material | Plastic | |
| type of output signal | Discrete | |
| supply circuit type | DC | |
| wiring technique | 4-wire | |
| discrete output type | PNP | |
| discrete output function | 1 NO or 1 NC programmable | |
| electrical connection | Cable | |
| cable length | 2 m | |
| product specific application | Conveyor system and access control series | |
| emission | Red LED, pulsed | |
| [Sn] nominal sensing distance | 1 m polarised reflex4 m thru beam0,08 m diffuse with background suppression0,25 m diffuse with adjustable sensitivity |
| enclosure material | ABS | |
|---|---|---|
| lens material | PMMA | |
| cover material | PVC | |
| pulse frequency | 6 kHz | |
| output type | Solid state | |
| [Us] rated supply voltage | 12...24 V DC reverse polarity protection | |
| supply voltage limits | 10…30 V DC | |
| switching capacity in mA | 100 mA overload and short-circuit protection) | |
| switching frequency | 500 Hz | |
| maximum voltage drop | <2 V 100 mA closed state)<1 V 10 mA closed state) | |
| current consumption | < 25 mA no-load | |
| maximum delay response | 1 ms | |
| net weight | 0,075 kg |
| product certifications | CULusCE | |
|---|---|---|
| ambient air temperature for operation | 0…50 °C | |
| ambient air temperature for storage | -20…80 °C | |
| immunity to ambient light | 10000 lux natural light5000 lux incandescent bulb | |
| IP degree of protection | IP65 IEC 60529IP67 IEC 60529 |
| REACh-määrus | ||
|---|---|---|
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave |
| Garantii | 18 months |
|---|
