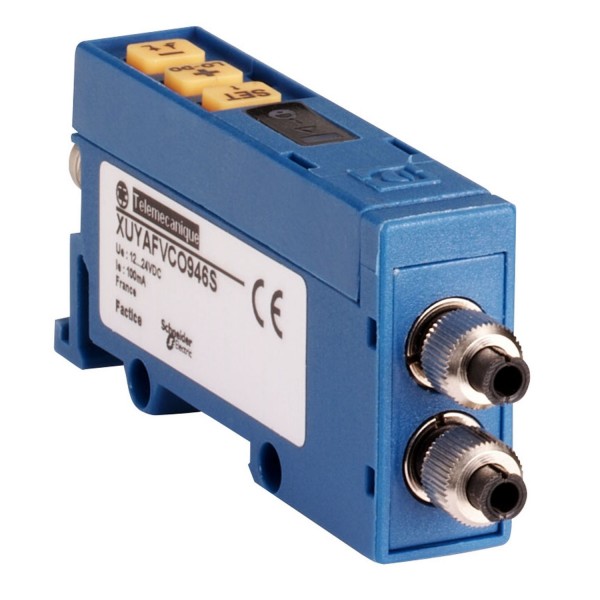

photo-electric sensor - XUY - ampli for fibre - glass - 12..24VDC

Details

Main
range of product	OsiSense XU
series name	Application assembly
specific application of photoelectric detector	Detection in aggressive environments Monitoring position or presence of parts on an assembly or packing machine Detection of presence of parts in a plastic mould Detection of items exiting an oven (high temperature fibers)
sensor name	XUY
sensor design	Fiber design
emission	Red LED

Complementary
electronic sensor type	Photo-electric sensor
material	Plastic
enclosure material	Polycarbonate
pulse frequency	8 kHz
type of output signal	Discrete
output type	Solid state
discrete output function	1 NO or 1 NC programmable
discrete output type	PNP and NPN
electrical connection	Cable
cable length	2 m
supply circuit type	DC
[Us] rated supply voltage	12...24 V DC reverse polarity protection
supply voltage limits	10…30 V DC
voltage state 0 guaranteed	< 1.4 V
voltage state 1 guaranteed	> 3 V
switching capacity in mA	100 mA overload and short-circuit protection)
switching frequency	< 1 kHz
maximum voltage drop	<2 V closed state)
current consumption	<= 40 mA no-load
maximum delay response	5 ms glass fibre optics 3 mm
maximum delay recovery	5 ms glass fibre optics 3 mm
setting-up	Sensitivity adjustment with teach mode
net weight	0,124 kg

Environment
product certifications	CE CULus
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-20…80 °C
immunity to ambient light	10000 lux natural light 20000 lux incandescent bulb
IP degree of protection	IP65 IEC 60529

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah

Contractual warranty
Garantii	18 months
