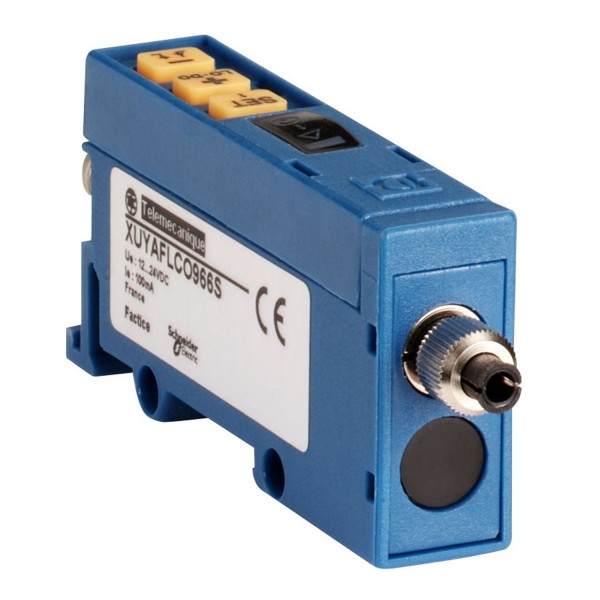

photo-electric sensor - XUY - ampli for fibre - illumination - 12..24VDC - M8

Ülevaaded: 0

Tootekood: XUYAFLCO966S

Quick Overview

Saadavus: Tellimisel

249,05 € (ilma KM-ta)

Details

Main
range of product
OsiSense XU
series name
Application assembly
electronic sensor type
Photo-electric sensor
product specific application
Verifying operation of indicator lights on electrical appliances
Testing car headlights on production line
sensor name
XUY
sensor design
Fiber design
material
Plastic
detection system
Diffuse
[Sn] nominal sensing distance
0 mm depending on plastic fibres diameter 2.2 mm used
wiring technique
4-wire
type of output signal
Discrete
Complementary
enclosure material
Polycarbonate
output type
Solid state
discrete output function
1 NO or 1 NC programmable
electrical connection
1 male connector M8, 4 pins
status LED
Output signal 1 LED green)
Limit of detection 1 LED red)
Time delay active 1 LED red)
supply circuit type
DC
[Us] rated supply voltage
24 V DC reverse polarity protection
supply voltage limits
10…30 V DC
voltage state 0 guaranteed
< 1.4 V
voltage state 1 guaranteed
> 3 V
switching capacity in mA
100 mA overload and short-circuit protection)
switching frequency
< 5 Hz
maximum voltage drop
<2 V closed state)
current consumption
< 40 mA
time delay range
0...5 s adjustment increments
maximum delay response
100 ms
maximum delay recovery
100 ms
setting-up
With sensitivity adjustment
net weight
0,054 kg
Environment
product certifications
CE
ambient air temperature for operation
0…60 °C
ambient air temperature for storage
-20…80 °C
IP degree of protection
IP65 IEC 60529
Offer Sustainability
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Contractual warranty
Garantii
18 months
