Details
Müüdavad tooted

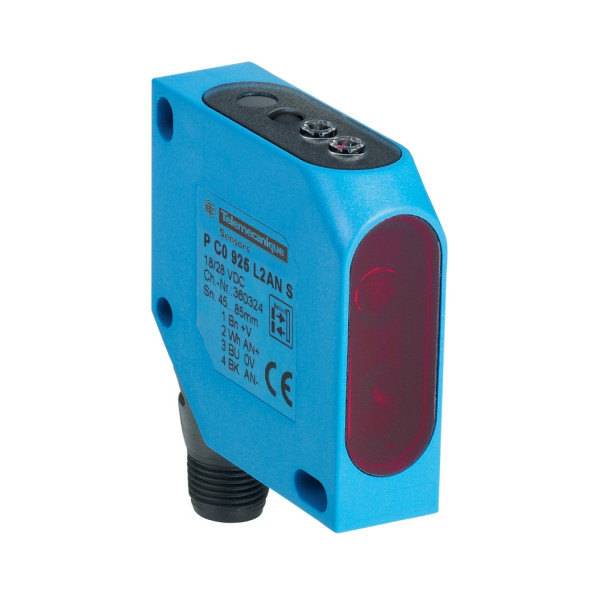

| range of product | OsiSense XU | |
|---|---|---|
| series name | Application material handling | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XUY | |
| sensor design | Compact 50 x 50 | |
| detection system | Diffuse | |
| material | Plastic | |
| supply circuit type | DC | |
| wiring technique | 5-wire | |
| discrete output type | PNP | |
| analogue output range | 4...20 mA | |
| electrical connection | 1 male connector M12, 5 pins | |
| product specific application | Measuring thickness of mechanical partsPosition control of robot arm | |
| emission | Red laser, pulsed 650 nm - class 1 IEC 825-1 | |
| [Sn] nominal sensing distance | 80…300 mm |
| enclosure material | ABS, anti-shock | |
|---|---|---|
| pulse frequency | 2,5 kHz | |
| linearity | < 0.25 % | |
| spot diameter | 5.25 mm at 80 mm | |
| spot dimension | 1.5 x 3.5 mm at 80 mm | |
| resolution | 200 µm | |
| status LED | Supply on 1 LED green)Dirty 1 LED red) | |
| [Us] rated supply voltage | 24 V DC reverse polarity protection | |
| supply voltage limits | 18…28 V DC | |
| switching capacity in mA | 100 mA overload and short-circuit protection) | |
| switching frequency | < 40 Hz | |
| maximum voltage drop | <2,4 V closed state) | |
| current consumption | 40 mA no-load | |
| maximum delay response | 40 ms output circuit medium speed mode0,4 ms output circuit fast speed mode | |
| setting-up | Parametering by buttons | |
| net weight | 0,057 kg |
| product certifications | CE | |
|---|---|---|
| ambient air temperature for operation | 0…45 °C | |
| ambient air temperature for storage | -20…60 °C | |
| immunity to ambient light | 5000 lux natural light | |
| vibration resistance | 7 gn +/- 1.5 mm 10…55 Hz) IEC 60068-2-6 | |
| shock resistance | 30 gn 11 ms) IEC 60068-2-27 | |
| IP degree of protection | IP67 IEC 60529 |
| REACh-määrus | ||
|---|---|---|
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave |
| Garantii | 18 months |
|---|
