Details
Characteristics

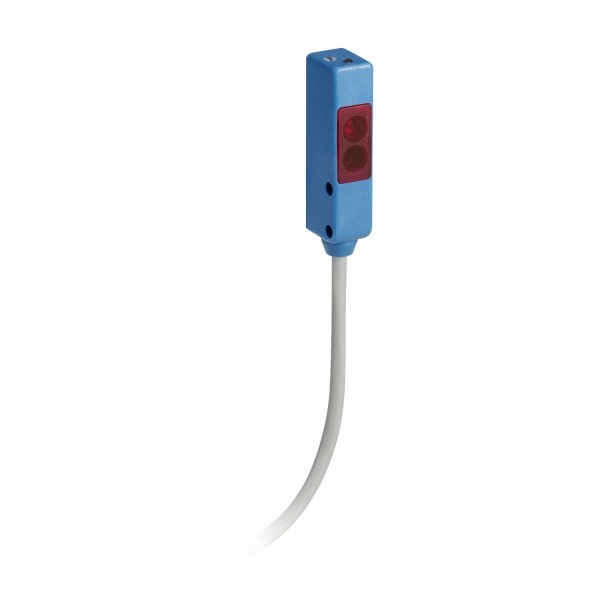

| range of product | OsiSense XU | |
|---|---|---|
| series name | Application, conveyor system and access control | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XUY | |
| sensor design | Compact | |
| detection system | Diffuse | |
| material | Plastic | |
| type of output signal | Discrete | |
| discrete output type | PNP and NPN | |
| discrete output function | 1 NO or 1 NC programmable | |
| electrical connection | Screw terminal | |
| product specific application | Materials handlingDetection of belt breakageAccess control | |
| emission | Infrared | |
| [Sn] nominal sensing distance | 1.5 m |
| enclosure material | Polycarbonate | |
|---|---|---|
| output type | Solid state | |
| status LED | 1 LED color: green for output status1 LED color: red for alignment assistance1 LED color: red for dirty optics1 LED color: red for limit of detection1 LED color: red for time delay1 LED color: red for time function indicator | |
| supply voltage limits | 10…30 V DC | |
| voltage state 0 guaranteed | < 1.4 V | |
| voltage state 1 guaranteed | > 3 V | |
| switching capacity in mA | 100 mA (overload and short-circuit protection) | |
| switching frequency | > 1000 Hz | |
| maximum voltage drop | <2 V at 100 mA (closed state)<1 V at 10 mA (closed state) | |
| current consumption | 50 mA no-load | |
| time delay range | 0...10 s retriggerable delay for output circuit | |
| setting-up | Teach mode and/or fine manual adjustment | |
| net weight | 0.13 kg |
| product certifications | CECULus | |
|---|---|---|
| ambient air temperature for operation | 0…60 °C | |
| ambient air temperature for storage | -20…80 °C | |
| immunity to ambient light | 10000 lux incandescent bulb at 5° of optical axis20000 lux natural light at 5° to the optical axis | |
| IP degree of protection | IP65 conforming to IEC 60529IP67 conforming to IEC 60529 |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information |
| Warranty | 18 months |
|---|
