Details
Müüdavad tooted

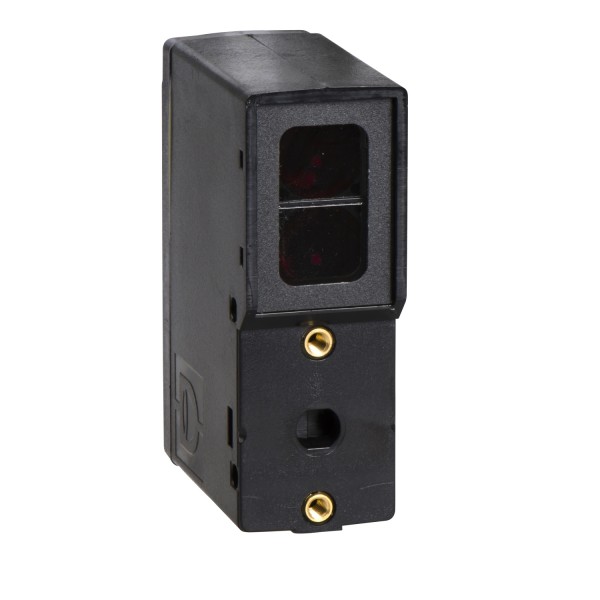

| range of product | OsiSense XU | |
|---|---|---|
| series name | Application | |
| electronic sensor type | Photo-electric sensor | |
| sensor name | XUY | |
| sensor design | Compact | |
| detection system | Polarised reflex | |
| material | Plastic | |
| line of sight type | Lateral | |
| type of output signal | Discrete | |
| supply circuit type | DC | |
| wiring technique | 4-wire | |
| discrete output type | PNP/NPN | |
| discrete output function | 1 NO or 1 NC programmable | |
| electrical connection | 1 male connector M8, 4 pins | |
| product specific application | Position or presence control of parts on conditionning machineDetection of shiny partsThrough beam on a conveyor | |
| emission | Red LED | |
| [Sn] nominal sensing distance | 0,02…1 m with reflector Ø 46 mm0,02…2 m with reflector Ø 84 mm |
| enclosure material | Polycarbonate strong housing | |
|---|---|---|
| pulse frequency | 8 kHz | |
| output type | Solid state | |
| [Us] rated supply voltage | 12...24 V DC reverse polarity protection | |
| supply voltage limits | 10…30 V DC | |
| switching capacity in mA | 100 mA overload and short-circuit protection) | |
| switching frequency | <= 1 kHz | |
| maximum voltage drop | <2 V 100 mA closed state)<1 V 10 mA closed state) | |
| current consumption | < 40 mA no-load | |
| maximum delay response | 500 ms | |
| maximum delay recovery | 500 ms | |
| setting-up | Parametering by buttons | |
| depth | 13 mm | |
| length | 78 mm | |
| width | 30 mm |
| product certifications | CECULus | |
|---|---|---|
| ambient air temperature for operation | 0…60 °C | |
| ambient air temperature for storage | -20…80 °C | |
| immunity to ambient light | 10000 lux incandescent bulb20000 lux natural light | |
| IP degree of protection | IP65 IEC 60529 |
| REACh-määrus | ||
|---|---|---|
| ELi RoHS direktiiv | Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon | |
| Elavhõbedavaba | Jah | |
| RoHS eranditeave |
| Garantii | 18 months |
|---|
