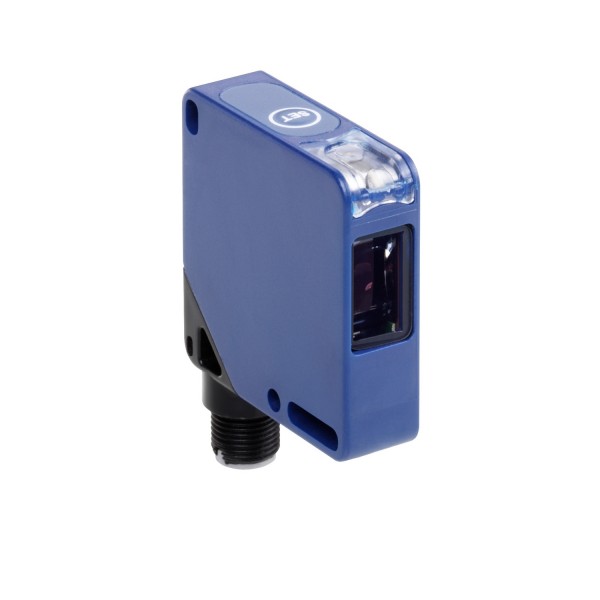

photoelectric sensor - color mark - Sn 20 mm - NC

Details

Main
range of product	OsiSense XU
series name	Application packaging
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Diffuse
emission	White LED
[Sn] nominal sensing distance	19 mm Ø 3.5 mm
material	Plastic
switching frequency	<= 5 kHz
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP
discrete output function	1 NO or 1 NC programmable
electrical connection	1 male connector M12 adjustable through 90°, 4 pins
product specific application	Colour mark
sale per indivisible quantity	1

Complementary
enclosure material	ABS
lens material	Glass
resolution	0.5 mm
depth of field	+/- 2 mm
maximum passing speed of object	2,5 m/s 1 mm
output type	Solid state
output function governance	Light or dark teaching
add on output	Without
add on input	Remote teaching
status LED	Stability 1 LED green) Error 1 LED green/red (flashing)) Output state 1 LED yellow)
[Us] rated supply voltage	12...24 V DC
supply voltage limits	DC
switching capacity in mA	<= 100 mA reverse polarity, overload and short-circuit protection)
maximum voltage drop	<2 V closed state)
current consumption	<= 30 mA no-load
maximum delay response	0,1 ms
maximum delay recovery	0,1 ms
setting-up	Sensitivity adjustment with teach mode
depth	50 mm
height	50 mm
width	15 mm
net weight	0,045 kg

Environment
product certifications	CULus CE
ambient air temperature for operation	-10…55 °C
ambient air temperature for storage	-20…70 °C
vibration resistance	+/-0.5 mm 10…55 Hz) IEC 60068-2-6
shock resistance	30 gn 11 ms) 6 shocks on each axis IEC 60068-2-27
IP degree of protection	IP65 IEC 60529

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
