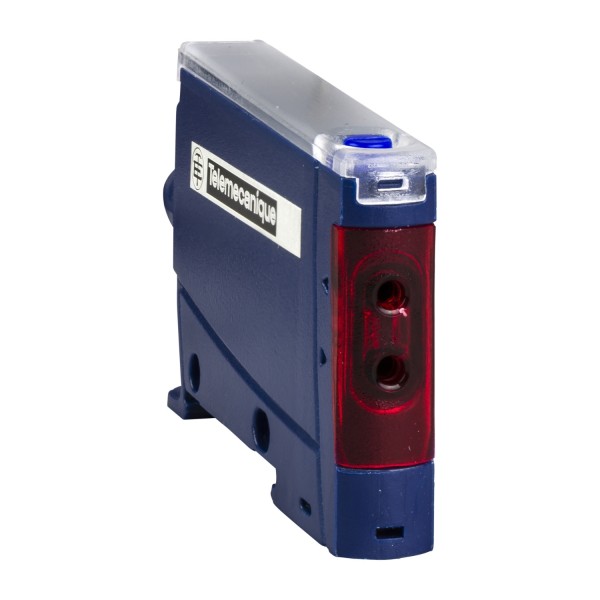

photoelectric sensor - XUD - M8 - PVC - PNP

Details

Main
range of product	OsiSense XU
series name	Application assembly
specific application of photoelectric detector	Object
sensor name	XUD

Complementary
electronic sensor type	Photo-electric sensor
sensor design	Fiber design
enclosure material	PBT
wiring technique	3-wire
supply circuit type	DC
type of output signal	Discrete
output type	Solid state
discrete output function	1 NO or 1 NC programmable
discrete output type	PNP
electrical connection	1 male connector M8, 4 pins
cable material	PVC
status LED	Instability 1 LED red) Output state 1 LED yellow)
[Us] rated supply voltage	12...24 V DC reverse polarity protection
supply voltage limits	10,8…26,4 V DC
current consumption	<= 50 mA no-load
switching capacity in mA	<= 100 mA overload protection) <= 100 mA short-circuit protection)
maximum voltage drop	<2 V closed)
switching frequency	<= 1 kHz
add on output	Without
maximum delay first up	120 ms
maximum delay response	0,5 ms
maximum delay recovery	0,5 ms
product compatibility	Glass or plastic fibre optics 1 mm or 2.2 mm
setting-up	Sensitivity adjustment with teach mode
lens material	PMMA
depth	10 mm
height	65 mm
width	40 mm
net weight	0,04 kg

Environment
emission	Red
interference protection	Without
product certifications	CULus CE
IP degree of protection	IP64 optic fiber Ø 1 mm IEC 529 IP65 optic fiber Ø 2 mm IEC 529
ambient air temperature for operation	-10…55 °C
ambient air temperature for storage	-30…70 °C
vibration resistance	+/-0.5 mm 10…55 Hz)IEC 60068-2-6 7 gn 10…55 Hz)IEC 60068-2-6
shock resistance	30 gn 11 ms) IEC 60068-2-27

Offer Sustainability
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah

Contractual warranty
Garantii	18 months
