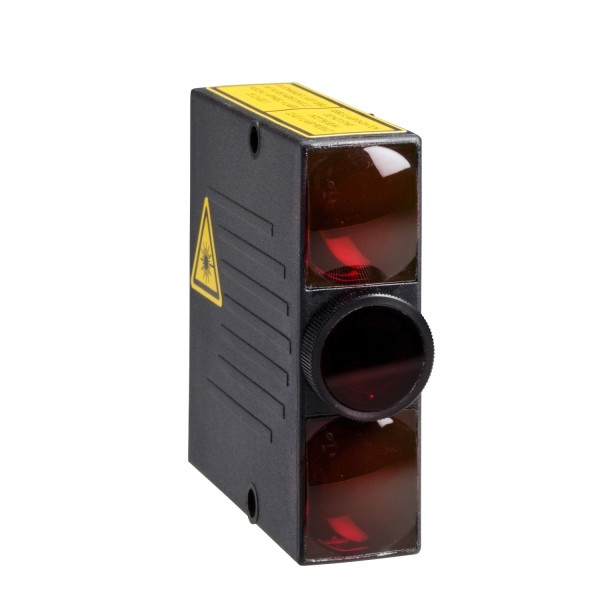

photoelectric sensor - XUY - BGS - laser - Sn 300 mm - 12..24VDC - M8

Ülevaaded: 0

Tootekood: XUYPS1LCO965S

Quick Overview

Saadavus: Tellimisel

437,49 € (ilma KM-ta)

Details

Main
range of product
OsiSense XU
series name
Application, materials handling
electronic sensor type
Photo-electric sensor
sensor name
XUY
sensor design
Compact
detection system
Diffuse with background suppression
material
Plastic
type of output signal
Discrete
supply circuit type
DC
wiring technique
4-wire
discrete output type
PNP and NPN
discrete output function
1 NO or 1 NC programmable
electrical connection
1 male connector M8, 4 pins
product specific application
Control of level
Monitoring of small parts on production machine
Monitoring for crack on a component
Suppression of a background
Detection of components on a printed circuit
emission
Red laser, pulsed 675 nm - class 2
[Sn] nominal sensing distance
50…300 mm
Complementary
enclosure material
Glass impregnated nylon
lens material
PMMA
spot diameter
0 mm manual adjustment
minimum object diameter for detection
0,5 mm
output type
Solid state
status LED
Output state 1 LED green)
NC function 1 LED none)
NO function 1 LED red)
Time delay active 1 LED red)
[Us] rated supply voltage
12...24 V DC reverse polarity protection
supply voltage limits
10…30 V DC
switching capacity in mA
100 mA overload and short-circuit protection)
switching frequency
> 5 kHz
maximum voltage drop
<2 V closed state)
current consumption
35 mA
maximum delay response
40 ms output circuit depending on wiring
maximum delay recovery
150 µs
setting-up
Manual adjustment of focusing
net weight
0,081 kg
Environment
product certifications
CULus
CE
ambient air temperature for operation
0…50 °C
ambient air temperature for storage
-20…60 °C
immunity to ambient light
10000 lux natural light
500 lux incandescent bulb
IP degree of protection
IP65 IEC 60529
Offer Sustainability
Jätkusuutliku pakkumise olek
Green Premium toode
REACh-määrus
ELi RoHS direktiiv
Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse)
ELi RoHS deklaratsioon
Elavhõbedavaba
Jah
RoHS eranditeave
Keskkonnaalane avaldus
Ringlusprofiil
Contractual warranty
Garantii
18 months
