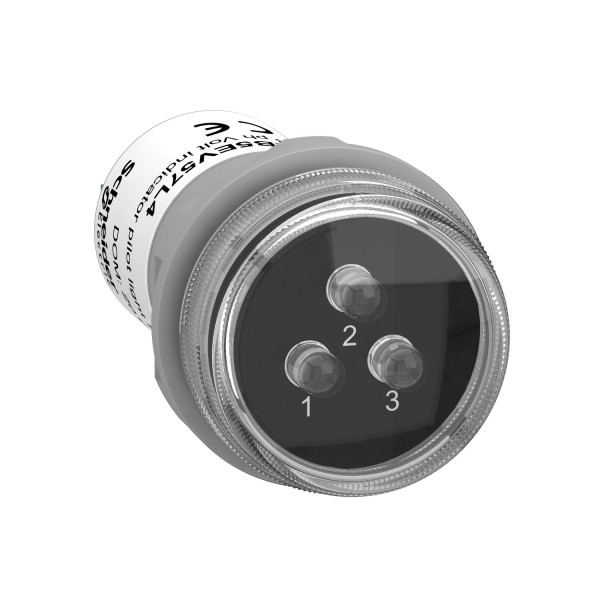

Pilot light 3 phases voltage, indicator with 3 LED, white, 400 V AC

Ülevaaded: 0

Tootekood: XB5EV57L4

Quick Overview

Saadavus: Tellimisel

125,18 € (ilma KM-ta)

Details

Main
range of product
Harmony XB5
product or component type
Pilot light
device short name
XB5
bezel material
Plastic
fixing collar material
Plastic
mounting diameter
30 mm
sale per indivisible quantity
1
shape of signaling unit head
Round
cap/operator or lens colour
Clear
light source
Protected LED
bulb base
Integral LED
light source colour
White
network number of phases
3 phases
device presentation
Monolithic product
Complementary
height
65.5 mm
width
36 mm
depth
77 mm
net weight
0.065 kg
connections - terminals
Faston terminals, connection size: 6.3 mm conforming to EN/IEC 60947-1
[Uimp] rated impulse withstand voltage
1 kV IEC 61000-4-5
compatibility code
XB5
supply voltage limits
450 V AC
current consumption
2.6 mA
service life
100000 h at rated voltage and 25 °C
surge withstand
1 kV conforming to IEC 61000-4-5
Environment
ambient air temperature for storage
-40…70 °C
ambient air temperature for operation
-30…70 °C
IP degree of protection
IP55 (front face) conforming to IEC 60529
IP67 (front face)
IP20 (back face)
IK degree of protection
IK10 conforming to IEC 50102
standards
EN/IEC 60947-5-1
EN/IEC 60947-5-4
EN/IEC 60947-1
resistance to fast transients
2 kV conforming to IEC 61000-4-4
resistance to electromagnetic fields
10 V/m conforming to IEC 61000-4-3
electromagnetic compatibility
Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
Electrostatic discharge - test level: 4 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
