Details
Characteristics
| range of product | Harmony XVL | |
|---|---|---|

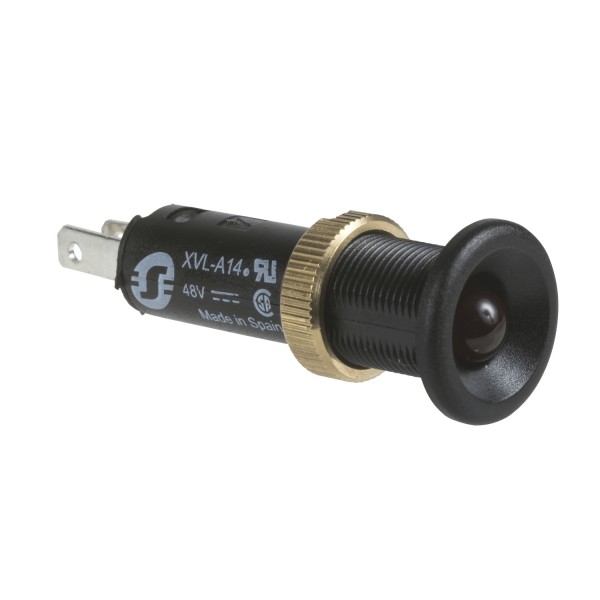

| product or component type | LED pilot light with black bezel | |
| component name | XVL | |
| mounting diameter | 8 mm | |
| light source | Protruding LED | |
| light block colour | Red | |
| protection type | Built-in by diodeIntegral ballast resistor | |
| [Us] rated supply voltage | 48 V | |
| IP degree of protection | IP40 conforming to IEC 60529IP40 conforming to NF C 20-010 |
| supply circuit type | DC | |
|---|---|---|
| connections - terminals | Tag for Faston connectors: 2.8 x 0.5 mmTag for soldering connectors | |
| current consumption | 10 mA | |
| [Ui] rated insulation voltage | 50 V conforming to IEC 60947-1 | |
| bulb lifespan | 100000 h | |
| nominal voltage limit | 0.8...1.1 Un | |
| terminals description ISO n°1 | (X1-X2)PL | |
| height | 12 mm | |
| width | 12 mm | |
| depth | 34 mm | |
| net weight | 0.003 kg |
| product certifications | CSAUL | |
|---|---|---|
| protective treatment | TC | |
| ambient air temperature for operation | -25…70 °C | |
| ambient air temperature for storage | -40…70 °C | |
| overvoltage category | Class 3 conforming to IEC 60536Class 3 conforming to NF C 20-030 |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
