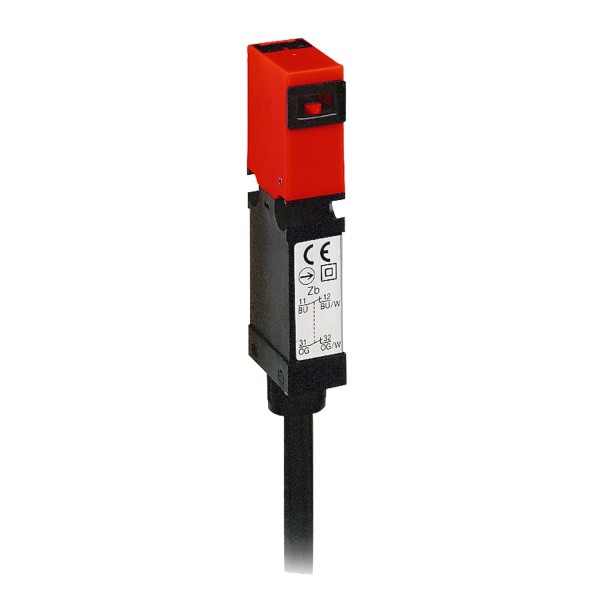

plastic safety switch XCSMP - 1 NC + 1 NO - slow break

Details

Main
range of product	Preventa Safety detection
product or component type	Safety switch
component name	XCSMP
design	Miniature
material	Plastic
head type	Key operated fixed head
contacts type and composition	1 NC + 1 NO
contact operation	Slow-break, break before make
electrical connection	Pre-cabled
number of poles	2
locking options description	Without locking of actuator

Complementary
insulation	Double insulated
cable length	5 m
cable composition	4 x 0.5 mm²
positive opening	With NC contact
mechanical durability	1000000 cycles
minimum actuation speed	0.05 m/s
maximum actuation speed	1.5 m/s
[Ie] rated operational current	0.55 A at 125 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 0.27 A at 250 V, DC-13, Q300 conforming to EN/IEC 60947-5-1 0.75 A at 240 V, AC-15, C300 conforming to EN/IEC 60947-5-1 1.5 A at 120 V, AC-15, C300 conforming to EN/IEC 60947-5-1
[Ithe] conventional enclosed thermal current	2.5 A
[Ui] rated insulation voltage	300 V conforming to UL 508 500 V conforming to EN/IEC 60947-1 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstand voltage	EN/IEC 60947-5-1 6 kV
short-circuit protection	10 A cartridge fuse type gG (gl)
actuator forcible withdrawal rtc	8 N
minimum actuator force for extraction	8 N
maximum operating rate	20 cyc/mn for maximum durability
safety level	Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 Can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508
safety reliability data	B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
body material	PA (polyamide)
head material	PA (polyamide)
depth	30 mm
height	87 mm
width	15 mm
net weight	0.11 kg

Environment
standards	CSA C22.2 No 14 EN 1088/ISO 14119 EN/IEC 60947-5-1 UL 508 EN/IEC 60204-1 EN/ISO 12100
product certifications	UL CSA CUL
protective treatment	TC
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-25…80 °C
vibration resistance	6 gn (f= 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	50 gn for 11 ms conforming to IEC 60068-2-27
electrical shock protection class	Class II conforming to EN/IEC 61140
IP degree of protection	IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Offer Sustainability
REACh Regulation	REACh Declaration
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes

Contractual warranty
Warranty	18 months
