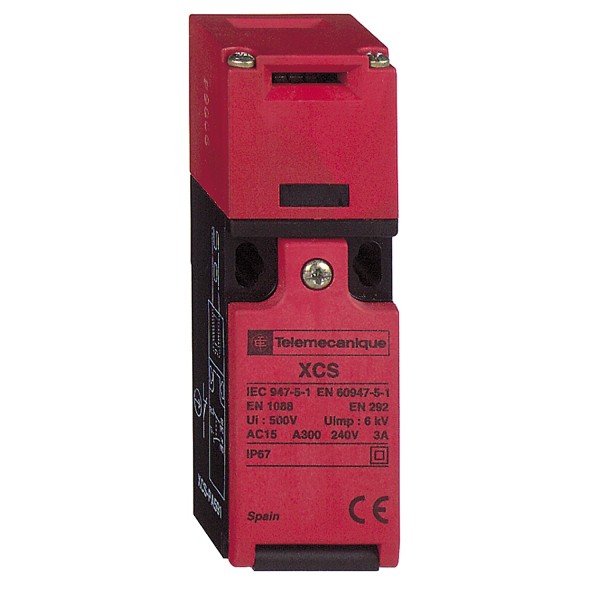

plastic safety switch XCSPA - 2 NC + 1 NO - slow break

Details

Main
range of product	Preventa Safety detection
product or component type	Safety switch
component name	XCSPA
design	Compact
material	Plastic
head type	Key operated turret head
contacts type and composition	2 NC + 1 NO
contact operation	Slow-break, break before make
cable entry	1 entry tapped M16 x 1.5
cable outer diameter	7…10 mm
electrical connection	Terminal 1 x 0.34...2 x 0.75 mm²
number of poles	3
locking options description	Without locking of actuator

Complementary
insulation	Double insulated
positive opening	With NC contact
mechanical durability	1000000 cycles
positive opening minimum force	15 N
minimum actuation speed	0,01 m/s
maximum actuation speed	0,5 m/s
[Ie] rated operational current	6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 0,55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 0,27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
[Ithe] conventional enclosed thermal current	10 A
[Ui] rated insulation voltage	300 VUL 508 300 VCSA C22.2 No 14 400 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage	4 kV EN/IEC 60947-5-4
short-circuit protection	6 A cartridge fuse gG (gl)
actuator forcible withdrawal rtc	10 N
maximum operating rate	10 cyc/mn for maximum durability
safety level	Can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 Can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 Can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
safety reliability data	B10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
body material	PA (polyamide)
head material	PA (polyamide)
depth	30 mm
height	94 mm
width	30 mm
net weight	0,11 kg

Environment
standards	EN/IEC 60947-5-1 EN 1088/ISO 14119 CSA C22.2 No 14 EN/IEC 60204-1 UL 508 EN/ISO 12100
product certifications	UL CSA
protective treatment	TC
ambient air temperature for operation	-25…70 °C
ambient air temperature for storage	-40…70 °C
vibration resistance	5 gn 10…500 Hz)IEC 60068-2-6
shock resistance	10 gn 11 ms IEC 60068-2-27
electrical shock protection class	Class II EN/IEC 61140
IP degree of protection	IP67 EN/IEC 60529 and EN/IEC 60947-5-1

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Keskkonnaalane avaldus	Toote keskkonnaprofiil
Ringlusprofiil	Kasutuselt kõrvaldamise teave

Contractual warranty
Garantii	18 months
