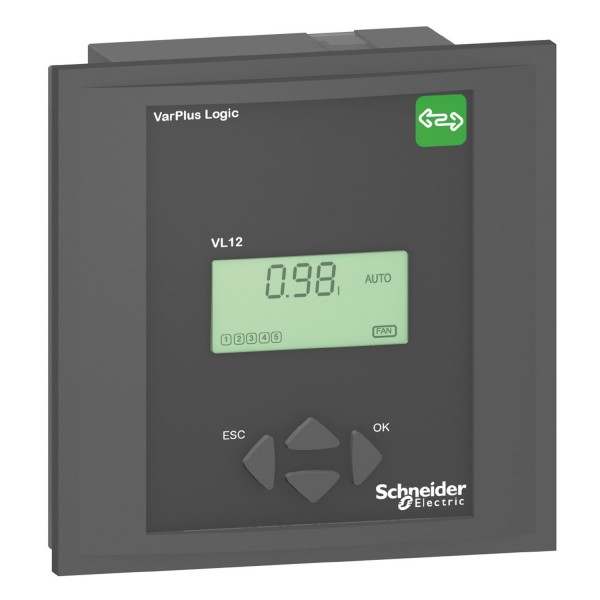

Power Factor controller - VarPlus Logic - VPL 12

Ülevaaded: 0

Tootekood: VPL12N

Quick Overview

Saadavus: Tellimisel

251,90 € (ilma KM-ta)

Details

Main
range
VarPlus
product name
VarPlus Logic
device short name
VPL12
product or component type
Power factor controller
Complementary
number of step output contacts
12
[Us] rated supply voltage
90...550 V AC
<= 999 kV AC with external VT
measurement current
0…5 A
measurement voltage
90…550 V AC 50/60 Hz
operating mode
Manual or automatic
number of quadrant operation for generator application
4
device connection
Communication Modbus RS485
input function
Switch 1 x dry contact
colour code
Front dark grey RAL 7016
display type
Backlit LCD
display size
56 x 25 mm
function available
Manual programming
Automatic initialisation
Automatic detection
Advanced programming (expert)
Any step sequence
metering type
Power factor and displacement PF (signed, four quadrant)
Total current harmonic distortion THD (I)
Power factor average over lifetime
Temperature maximum
Phase current I1, I2, I3 RMS on load
Active power P, P1, P2, P3 on load
Reactive power Q, Q1, Q2, Q3 on load
Apparent power S, S1, S2, S3 on load
Voltage U21, U32, U13, V1, V2, V3 on load
type of measurement
Capacitor current overload Irms/I1
Individual voltage harmonic
Power factor
Operating time
Cos φ
Ambient temperature inside the cubicle
Tan φ
information displayed
Number of switching cycles per step
Individual step size in kVAr
Remaining step capacity in %
type of alarms
Step power loss < 75 %)message and alarm contact + step blocked
Step faultymessage and alarm contact + step blocked
High current > 6 A CT)message and alarm contact
Hunting (unstable regulation)message and alarm contact + step blocked
Low current < 15 mA CT)message and alarm contact
Overcompensationmessage and alarm contact
Capacitor current overload (Irms/I1) > 130 % I1)message and alarm contact + step switched off
Overtemperature 50 °C)message and alarm contact + step switched off
Overtemperature 30 °C)fan switch
Overvoltage +/- 10 %)message and alarm contact + control stopped
Total harmonic distortion > 7 %)message and alarm contact + step switched off
data recording
5 alarms
Operational Hours alarm
100000 h without maintenance
Operational counter alarm
65000 cycles without maintenance
input type
Phase to phase
Phase to neutral
Insensitive to CT polarity
Insensitive to phase rotation polarity
Current input CT...X/5 A and X/1 A
output type
Control relay 0.2 A 110 V DC
Control relay 1 A 48 V DC
Control relay 2 A 400 V AC 50/60 Hz
Control relay 1 A 24 V DC
Control relay 5 A 250 V AC 50/60 Hz
Control relay 5 A 120 V AC 50/60 Hz
Fan 5 A 250 V AC 50/60 Hz
Fan 1 A 48 V DC
Alarm relay 5 A 250 V AC 50/60 Hz
Alarm relay 1 A 48 V DC
Maximum at the common terminal
10 A
settings operating mode
Automatic
Manual
type of setting
Choice of stepping programs auto
Choice of stepping programs LIFO
Choice of stepping programs linear
Delay between 2 successive switch on the same step 5...1200 s
Step configuration programming auto
Step configuration programming off
Step configuration programming fixed
Target cos phi 0.7 inductive...0.7 capacitive
Target cos phi dual cos φ
measurement accuracy
Voltage +/- 1 %
Current +/- 1 %
Frequency +/- 1 %
Energy (P,Q,S) +/- 2 %
Cos φ +/- 2 %
Total voltage harmonic distortion THD (U) +/- 2 %
Individual voltage harmonic +/- 3 %
Temperature +/- 3 °C
time delay range
1...6500 s on reconnection)
1...6500 s on response)
provided equipment
User manual
mounting mode
Flush-mounted
mounting support
Panel 1…3 mm
mounting location
In cabinet
cut-out dimensions
138 x 138 mm
height
144 mm
width
144 mm
depth
58 mm
net weight
0,6 kg
Environment
standards
IEC 61000-6-4
UL 61010-1
EN 61010-1
IEC 61000-6-2
IEC 61326-1
product certifications
EAC
NRTL
CNRTL
CE
IP degree of protection
Front face IP41
Rear face IP20
operating altitude
<= 2000 m
ambient air temperature for operation
-20…60 °C
ambient air temperature for storage
-40…85 °C
Offer Sustainability
REACh-määrus
Ilma SVHC REACh-ta
Jah
ELi RoHS direktiiv
Hiina EoHS regulatsioon
Hiina RoHS deklaratsioon
Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
