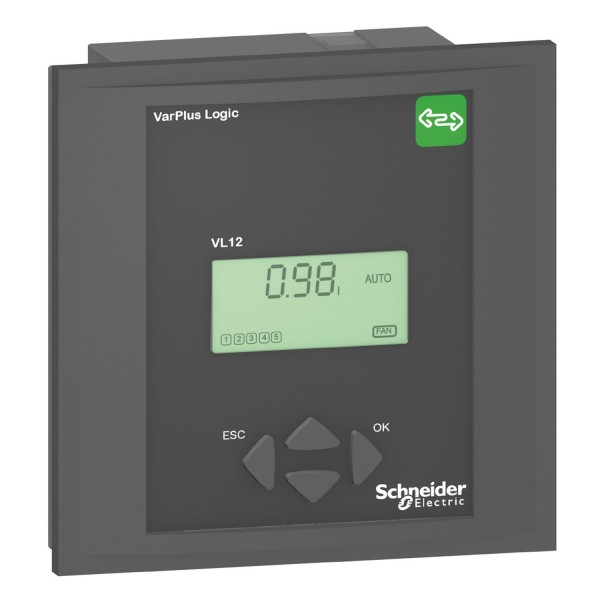

| range | VarPlus | |
|---|---|---|
| product name | VarPlus Logic | |
| device short name | VPL6 | |
| product or component type | Power factor controller |
| number of step output contacts | 6 | |
|---|---|---|
| [Us] rated supply voltage | 90...550 V AC<= 999 kV AC with external VT | |
| measurement current | 0…5 A | |
| measurement voltage | 90…550 V AC 50/60 Hz | |
| operating mode | Manual or automatic | |
| number of quadrant operation for generator application | 4 | |
| device connection | Communication Modbus RS485 | |
| input function | Switch 1 x dry contact | |
| colour code | Front dark grey RAL 7016 | |
| display type | Backlit LCD | |
| display size | 56 x 25 mm | |
| function available | Automatic detectionAdvanced programming (expert)Manual programmingAny step sequenceAutomatic initialisation | |
| metering type | Power factor and displacement PF (signed, four quadrant)Total current harmonic distortion THD (I)Power factor average over lifetimeTemperature maximumPhase current I1, I2, I3 RMS on loadActive power P, P1, P2, P3 on loadReactive power Q, Q1, Q2, Q3 on loadApparent power S, S1, S2, S3 on loadVoltage U21, U32, U13, V1, V2, V3 on load | |
| type of measurement | Ambient temperature inside the cubicleTan φIndividual voltage harmonicCos φOperating timePower factorCapacitor current overload Irms/I1 | |
| information displayed | Number of switching cycles per stepRemaining step capacity in %Individual step size in kVAr | |
| type of alarms | Step power loss < 75 %)message and alarm contact + step blockedStep faultymessage and alarm contact + step blockedHigh current > 6 A CT)message and alarm contactHunting (unstable regulation)message and alarm contact + step blockedLow current < 15 mA CT)message and alarm contactOvercompensationmessage and alarm contactCapacitor current overload (Irms/I1) > 130 % I1)message and alarm contact + step switched offOvertemperature 50 °C)message and alarm contact + step switched offOvertemperature 30 °C)fan switchOvervoltage +/- 10 %)message and alarm contact + control stoppedTotal harmonic distortion > 7 %)message and alarm contact + step switched off | |
| data recording | 5 alarms | |
| Operational Hours alarm | 100000 h without maintenance | |
| Operational counter alarm | 65000 cycles without maintenance | |
| input type | Insensitive to phase rotation polarityInsensitive to CT polarityPhase to neutralCurrent input CT...X/5 A and X/1 APhase to phase | |
| output type | Control relay 0.2 A 110 V DCControl relay 1 A 48 V DCControl relay 2 A 400 V AC 50/60 HzControl relay 1 A 24 V DCControl relay 5 A 250 V AC 50/60 HzControl relay 5 A 120 V AC 50/60 HzFan 5 A 250 V AC 50/60 HzFan 1 A 48 V DCAlarm relay 5 A 250 V AC 50/60 HzAlarm relay 1 A 48 V DC | |
| Maximum at the common terminal | 10 A | |
| settings operating mode | ManualAutomatic | |
| type of setting | Choice of stepping programs autoChoice of stepping programs LIFOChoice of stepping programs linearDelay between 2 successive switch on the same step 5...1200 sStep configuration programming autoStep configuration programming offStep configuration programming fixedTarget cos phi 0.7 inductive...0.7 capacitiveTarget cos phi dual cos φ | |
| measurement accuracy | Voltage +/- 1 %Current +/- 1 %Frequency +/- 1 %Energy (P,Q,S) +/- 2 %Cos φ +/- 2 %Total voltage harmonic distortion THD (U) +/- 2 %Individual voltage harmonic +/- 3 %Temperature +/- 3 °C | |
| time delay range | 1...6500 s on reconnection)1...6500 s on response) | |
| provided equipment | User manual | |
| mounting mode | Flush-mounted | |
| mounting support | Panel 1…3 mm | |
| mounting location | In cabinet | |
| cut-out dimensions | 138 x 138 mm | |
| height | 144 mm | |
| width | 144 mm | |
| depth | 58 mm | |
| net weight | 0,6 kg |
| standards | IEC 61000-6-2EN 61010-1IEC 61000-6-4IEC 61326-1UL 61010-1 | |
|---|---|---|
| product certifications | EACNRTLCNRTLCE | |
| IP degree of protection | Front face IP41Rear face IP20 | |
| operating altitude | <= 2000 m | |
| ambient air temperature for operation | -20…60 °C | |
| ambient air temperature for storage | -40…85 °C |
| REACh-määrus | ||
|---|---|---|
| Ilma SVHC REACh-ta | Jah | |
| ELi RoHS direktiiv | Vastavus ELi RoHS deklaratsioon | |
| Hiina EoHS regulatsioon | Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks. | |
| WEEE | Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka. |
