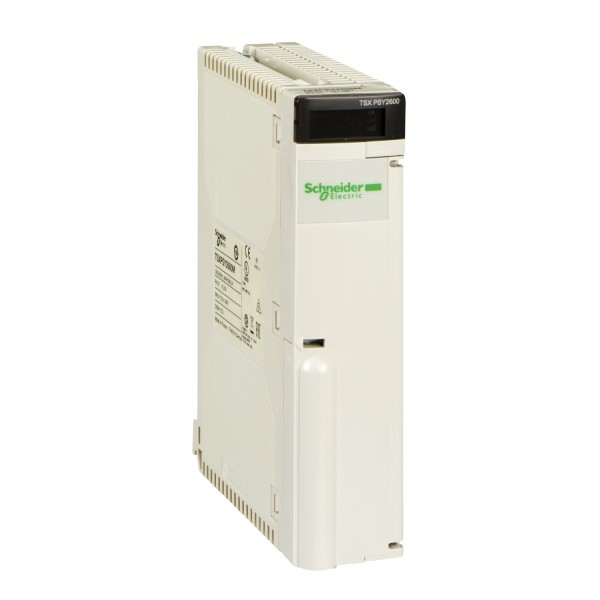

power supply module - 100..240 V AC - 300/500 mA - IP20

Tootekood: TSXPSY2600M

Quick Overview

Saadavus: Tellimisel

1 487,26 € (ilma KM-ta)

Qty:

Details

Main
range of product	Modicon Premium Automation platform
product or component type	Power supply module

Complementary
primary voltage	100...240 V AC 85...264 V
network frequency	50/60 Hz
network frequency limits	47…63 Hz
input current	300 mA 240 V 500 mA 100 V
inrush current	37 A 100 V 75 A 240 V
I²t on activation	0.63 A².s 100 V 2.6 A².s 240 V
It on activation	0.034 A.s 100 V 0.067 A.s 240 V
protection type	Internal fuse 4 A 5 x 20 mm time-delayed primary circuit Overload protection secondary circuit Overvoltage protection secondary circuit Short-circuit protection secondary circuit
total useful secondary power	26 W
secondary power	15 W 24 V DC 25 W 5 V DC
current at secondary voltage	0.5 A 24 V DC sensor power supply 0.6 A 24 V DC relay power supply 5 A 5 V DC
insulation resistance	>= 100 MOhm primary/ground >= 100 MOhm primary/secondary
marking	CE
local signalling	1 LED (green)presence of sensor voltage (24V): 1 LED (green)presence of voltages (OK): 1 LED (red)battery fault (BAT):
module format	Standard
net weight	0.51 kg

Environment
immunity to microbreaks	10 ms
dielectric strength	2000 V primary/earth 2000 V primary/secondary
standards	CSA C22.2 No 142 CSA C22.2 No 213 Class I Division 2 Group A IEC 61131-2 UL 508 89/336/EEC CSA C22.2 No 213 Class I Division 2 Group B 92/31/EEC 93/68/EEC CSA C22.2 No 213 Class I Division 2 Group D 73/23/EEC CSA C22.2 No 213 Class I Division 2 Group C
product certifications	RMRS BV RINA GL ABS DNV LR
ambient air temperature for operation	0…60 °C
ambient air temperature for storage	-25…70 °C
relative humidity	10…95 % without condensation for operation 5…95 % without condensation for storage
operating altitude	0...2000 m
protective treatment	TC
IP degree of protection	IP20
pollution degree	2

Contractual warranty
Warranty	18 months
