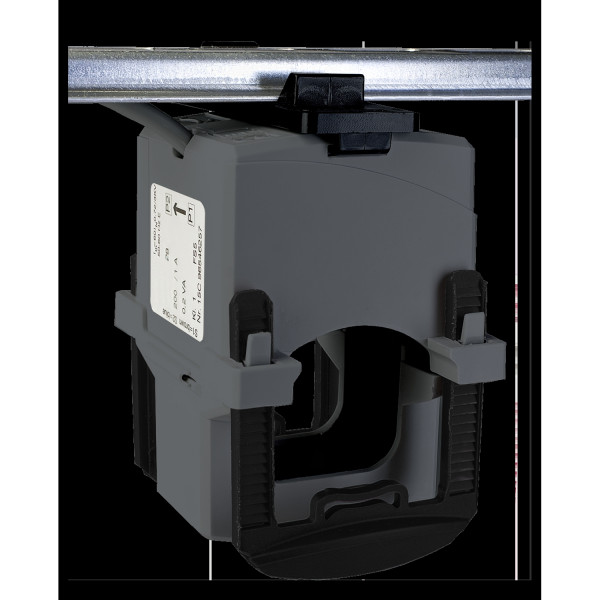

PowerLogic Split Core Current Transformer - Type HA, for cable - 0150A / 5A

Ülevaaded: 0

Tootekood: METSECT5HA015

Quick Overview

Saadavus: Tellimisel

73,92 € (ilma KM-ta)

Details

Main
range
PowerLogic
product name
CT
product or component type
Current transformer
secondary current
5 A
accuracy class
Class 1 1 VA
[In] rated current
150 A
Complementary
current transformer type
Standard for cable
Split core
current transformer ratio
150/5
[Ith] conventional free air thermal current
180 A
maximum safety factor
5
permissible current
9000 A 1 s
[Ue] rated operational voltage
< 720 V 50 Hz
[Ui] rated insulation voltage
3 kV
mounting mode
Clip-on
width
Outside 49 mm
height
Outside 80,1 mm
depth
59 mm
diameter
Inner 18,4 mm
electrical insulation class
Class E
cable outer diameter
18,4 mm
connections - terminals
cable 2 0,5…1,5 mm² 0,5 m
Environment
standards
DIN EN 60044-1
DIN EN 61869-1
DIN EN 61869-2
VDE 0414
ambient air temperature for operation
-5…50 °C
ambient air temperature for storage
-25…70 °C
Offer Sustainability
ELi RoHS direktiiv
WEEE
Tootest tuleb Euroopa Liidu turgudel vabaneda vastavuses erijäätmeseadustele ning see ei tohi sattuda olmeprügi sekka.
