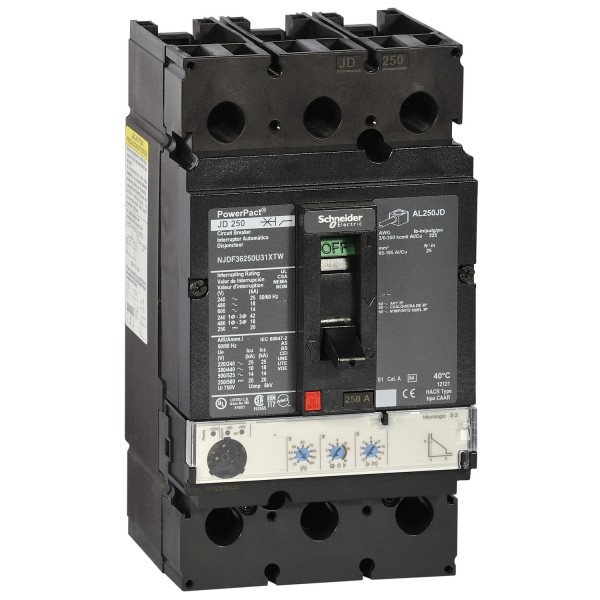

PowerPact multistandard - J-Frame - 250 A - 65 KA - Micrologic 3.0 trip unit

Ülevaaded: 0

Tootekood: NJGF36250U31XTW

Quick Overview

Saadavus: Tellimisel

549,66 € (ilma KM-ta)

Details

Main
range of product
PowerPact multistandard
range
PowerPact
product name
J-Frame
device short name
J-Frame
product or component type
Circuit breaker
device application
Distribution
Complementary
poles description
3P
control type
Toggle
mounting mode
Unit mount
mounting support
DIN rail
Flush
Backplate
electrical connection
Terminal nut line side
Terminal nut load side
[In] rated current
250 A at 40 °C
[Ui] rated insulation voltage
750 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV IEC 60947-2
[Ue] rated operational voltage
525 V AC 50/60 Hz conforming to IEC 60947-2
690 V AC 50/60 Hz conforming to IEC 947-2
600 V AC 50/60 Hz conforming to UL 489
breaking capacity code
JG
suitability for isolation
Yes
utilisation category
Category A
mechanical durability
5000 cycles
electrical durability
1000 cycles
connection pitch
45 mm
local signalling
ON/OFF indication
contact position indicator
Yes
trip unit name
Micrologic 3.0
trip unit technology
Electronic
trip unit protection functions
LI
trip unit rating
250 A
thermal memory
20 mn
display type
3 LEDs
breaking capacity
Icu: 65 kA at 220/240 V - AC conforming to IEC 947-2
Icu: 35 kA at 380/415 V - AC conforming to IEC 947-2
Icu: 35 kA at 440/480 V - AC conforming to IEC 947-2
Icu: 18 kA at 500/525 V - AC conforming to IEC 947-2
65 kA at 240 V - AC conforming to UL 489
35 kA at 480 V - AC conforming to UL 489
18 kA at 600 V - AC conforming to UL 489
[Ics] rated service breaking capacity
Ics: 65 kA at 220/240 V - AC conforming to IEC 947-2
Ics: 35 kA at 380/415 V - AC conforming to IEC 947-2
Ics: 35 kA at 440/480 V - AC conforming to IEC 947-2
Ics: 18 kA at 500/525 V - AC conforming to IEC 947-2
long time pick-up adjustment type Ir
Adjustable 9 settings
long time pick-up adjustment range
0.28...1 x In
[tr] long-time delay adjustment range
16 s
4 s
0.5 s
2 s
1 s
8 s
instantaneous pick-up adjustment type Ii
Adjustable 9 settings
instantaneous pick-up adjustment range
1.5...15 x In
overvoltage category
II
provision for padlocking
Non padlockable
height
191 mm
width
104 mm
depth
86 mm
standards
W-C-375B/GEN
CSA C22.2 No 5
UL 489
NEMA AB1
NMX J-266
IEC 60947-2
product certifications
CCC
CE
net weight
2.4 kg
Environment
IP degree of protection
IP40 conforming to IEC 60529
IK degree of protection
IK07 conforming to IEC 62262
pollution degree
3 conforming to IEC 60947-1
3 conforming to IEC 60664-1
ambient air temperature for operation
40 °C
ambient air temperature for storage
-50…85 °C
Offer Sustainability
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
