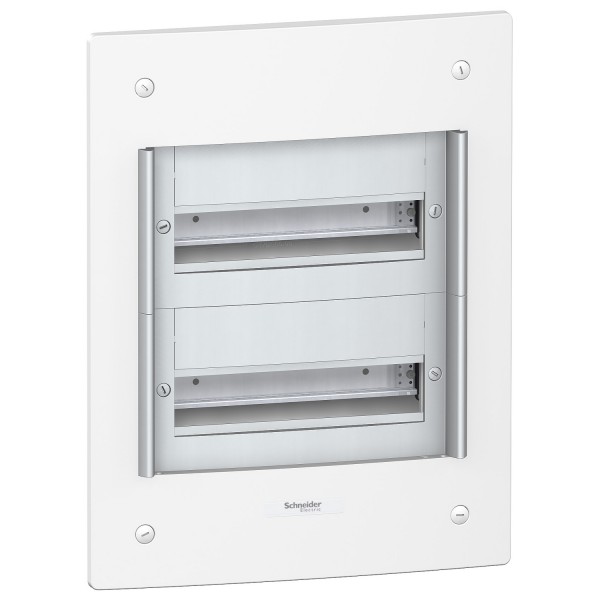

Pragma flush enclosure - IP30 - 2 x 13 modules - without door

Product was successfully added to your shopping cart.

Pragma flush enclosure - IP30 - 2 x 13 modules - without door

Tootekood: PRA32213

Quick Overview

Saadavus: Tellimisel

101,17 € (ilma KM-ta)

Qty:

Details

Main
range	Pragma
product or component type	Enclosure
enclosure type	Distribution enclosure
width	366 mm wall: Outside 396 mm
height	Wall 480 mm Outside 510 mm
depth	Wall 86 mm Outside 21 mm
Nb of 18 mm modules per row	13
Nb of horizontal rows	2
electrical insulation class	Double insulation Class II
provided equipment	1 x identification label 1 x marking kit 1 x blanking plate strip 3 x terminal block
Type of door	Without

Complementary
enclosure mounting	Flush
9 mm pitches	26
total number of 18 mm modules	26
power dissipation in W	50 W
[In] rated current	63 A
type of rail	DIN
mounting plate description	Without mounting plate
cable entry	Removable plates Side pre-cutouts Cable or tube
comb busbar and distribution block compatibility	XE compatible
number of terminal blocks	2 phase / neutral Quick)7 1 earth Quick)24
distribution block outgoers	3 x 25 mm² earth 21 x 4 mm² earth 2 x 35 mm² phase / neutral 12 x 16 mm² phase / neutral
enclosure material	Back part technoplastic Front face technoplastic
colour	Enclosure white RAL 9016) Front face white RAL 9016)
targeted country	France
embedding depth	86 mm
internal depth	84 mm

Environment
fire resistance	Front face 750 °C Back part 850 °C
IP degree of protection	IP30 without door IP40 with door
IK degree of protection	IK08 without door IK09 with door
overvoltage category	II
ambient air temperature for operation	-25…60 °C
standards	IEC 60670-1 IEC 60670-24 IEC 61439-1 IEC 61439-3

Offer Sustainability
Jätkusuutliku pakkumise olek	Green Premium toode
REACh-määrus	REACh-deklaratsioon
ELi RoHS direktiiv	Ennetav vastavus (toode ei jää EL-i RoHS seadustega määratud piiridesse) ELi RoHS deklaratsioon
Elavhõbedavaba	Jah
RoHS eranditeave	Jah
Hiina EoHS regulatsioon	Hiina RoHS deklaratsioon Toode ei kuulu Hiina RoHS sfääri. Ainedeklaratsioon teavitamiseks.
Keskkonnaalane avaldus	Toote keskkonnaprofiil

Contractual warranty
Garantii	18 months
