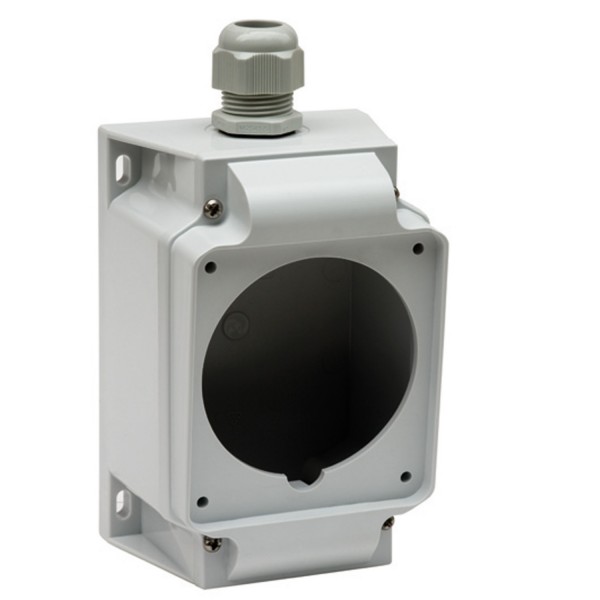

PratiKa - back box - 16/32 A - 3/4/5 P - surface mounted - 90 x 100 mm - IP67

Ülevaaded: 0

Tootekood: PKZ100

Quick Overview

Saadavus: Tellimisel

9,57 € (ilma KM-ta)

Details

Main
range
PratiKa
product or component type
Back box
device short name
PratiKa socket
plug, socket category
Low voltage
poles description
5P
3P or 4P
Complementary
[In] rated current
16 A
32 A
plug, socket material
Housing: self-extinguishing engineering polymer
contacts material
Screw: stainless steel
device mounting
Surface
mounting mode
Panel-mounted
net weight
0.33 kg
base dimension
90 x 100 mm
height
100 mm
width
90 mm
depth
89 mm
colour
Grey (RAL 7035)
Environment
standards
IEC 60309-1
IEC 60309-2
IP degree of protection
IP67 conforming to IEC 60529
IK degree of protection
IK09 conforming to EN 62262
fire resistance
850 °C conforming to IEC 60695-2-11
relative humidity
50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
ambient air temperature for operation
35 °C ( 86400 s )
-25…40 °C
Offer Sustainability
Sustainable offer status
Green Premium product
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Contractual warranty
Warranty
18 months
