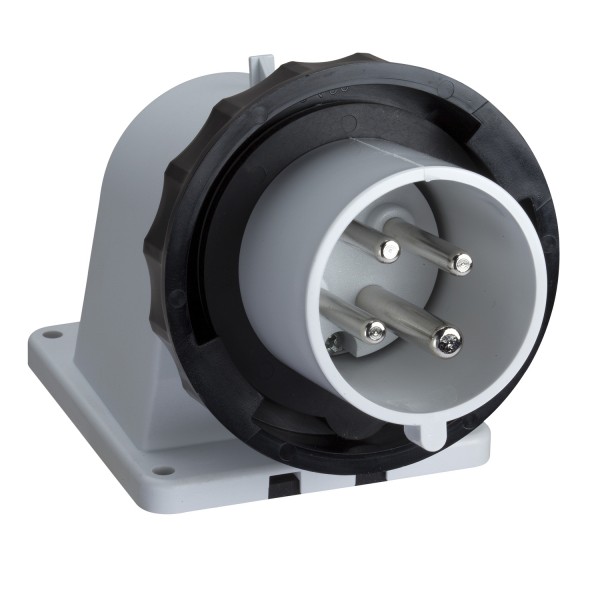

PratiKa industrial plug - 16 A - 3P + N + E - 480...500 V AC

Details

Complementary
mounting mode	Panel-mounted
plug, socket, control station shape	90° angled
[In] rated current	16 A
[Ue] rated operational voltage	480...500 V
network frequency	50/60 Hz
ground lug clockwise position	7 h
plug, socket material	Self-extinguishing engineering polymer
contacts material	Pins: nickel plated brass
connections - terminals	Captive screws
cable cross section	1…4 mm²
cable outer diameter	8…15 mm
cable entry	Cable gland
thread type	Pg 21
net weight	0.264 kg
base dimension	90 x 100 mm
height	148 mm
width	90 mm
depth	107 mm
colour	Grey (RAL 7035)
voltage colour	Black

Environment
standards	EN 60309-2 EN 60309-1
IP degree of protection	IP67 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
fire resistance	850 °C conforming to IEC 60695-2-1
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
operating altitude	2000 m
ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C

Offer Sustainability
Sustainable offer status	Green Premium product
EU RoHS Directive	Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration
Mercury free	Yes
RoHS exemption information	Yes
China RoHS Regulation	China RoHS declaration Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure	Product Environmental Profile

Contractual warranty
Warranty	18 months
