Details
Characteristics

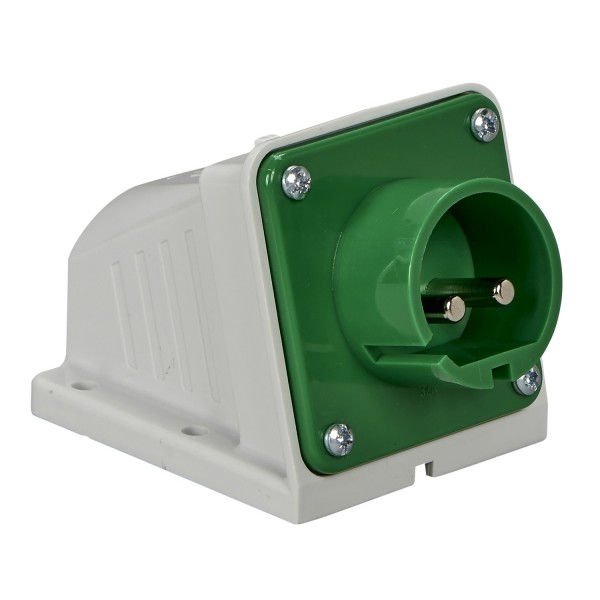

| range | PratiKa | |
|---|---|---|
| product or component type | Plug | |
| device short name | PratiKa plug | |
| plug, socket category | Extra-low voltage | |
| poles description | 2P | |
| network type | AC | |
| outlet standard | Industrial |
| mounting mode | Wall-mounted | |
|---|---|---|
| plug, socket, control station shape | Angled | |
| [In] rated current | 32 A | |
| [Ue] rated operational voltage | 20...25 V40...50 V | |
| network frequency | 100/200 Hz | |
| secondary keyway clockwise position | 4 h | |
| plug, socket material | Self-extinguishing engineering polymer | |
| contacts material | Pins: nickel plated brass | |
| connections - terminals | Captive screws | |
| cable cross section | 4…10 mm² | |
| cable outer diameter | 6…23 mm | |
| thread type | Pg 21 | |
| net weight | 0.157 kg | |
| base dimension | 70 x 82 mm | |
| height | 118 mm | |
| width | 70 mm | |
| depth | 81 mm | |
| colour | Grey (RAL 7035) | |
| voltage colour | Green |
| standards | EN 60309-1EN 60309-2 | |
|---|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 | |
| IK degree of protection | IK08 conforming to EN 62262 | |
| fire resistance | 850 °C conforming to IEC 60695-2-1 | |
| relative humidity | 50 % at 40 °C70 % at 30 °C90 % at 20 °C | |
| operating altitude | 2000 m | |
| ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
|---|---|---|
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information |
| Warranty | 18 months |
|---|
