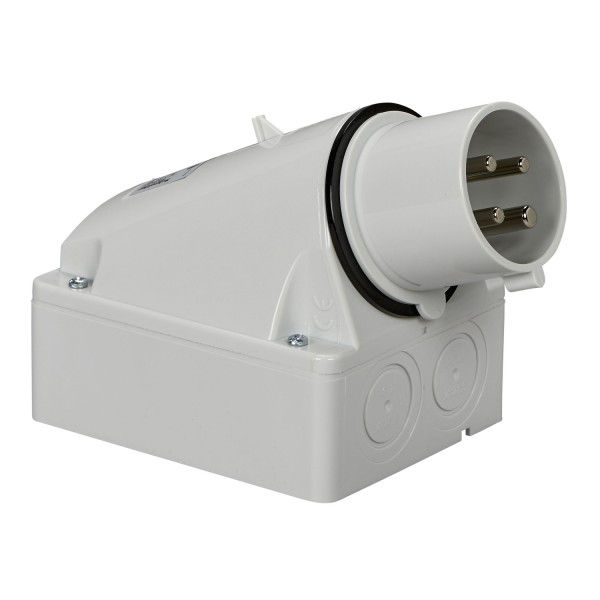

PratiKa industrial plug - 32 A - 3P + E - 480...500 V AC

Details

Complementary
mounting mode	Wall-mounted
plug, socket, control station shape	Angled
[In] rated current	32 A
[Ue] rated operational voltage	480...500 V
network frequency	50/60 Hz
ground lug clockwise position	7 h
plug, socket material	Self-extinguishing engineering polymer
contacts material	Pins: nickel plated brass
connections - terminals	Captive screws
cable cross section	2.5…10 mm²
cable outer diameter	11.5…21 mm
net weight	0.445 kg
base dimension	106 x 130 mm
height	130 mm
width	106 mm
depth	130 mm
colour	Grey (RAL 7035)
voltage colour	Black

Environment
standards	EN 60309-2 EN 60309-1
IP degree of protection	IP44 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
fire resistance	850 °C conforming to IEC 60695-2-1
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
operating altitude	2000 m
ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C

Contractual warranty
Warranty	18 months
