Details
Characteristics

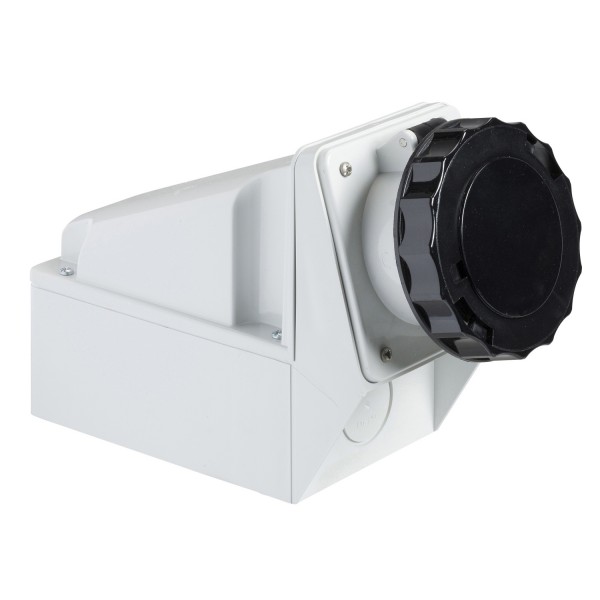

| range | PratiKa | |
|---|---|---|
| product or component type | Socket | |
| device short name | PratiKa socket | |
| plug, socket category | Low voltage | |
| poles description | 3P + E | |
| network type | AC | |
| outlet standard | Industrial |
| mounting mode | Wall-mounted | |
|---|---|---|
| plug, socket, control station shape | Angled | |
| [In] rated current | 63 A | |
| [Ue] rated operational voltage | 480...500 V | |
| network frequency | 50/60 Hz | |
| ground lug clockwise position | 7 h | |
| plug, socket material | Housing: self-extinguishing engineering polymer | |
| contacts material | Pins: stainless steelSleeves: nickel plated brassSprings: stainless steel | |
| connections - terminals | Captive screws, completely loosened | |
| cable cross section | 6…25 mm² | |
| cable entry | Cable gland | |
| thread type | Pg 36 | |
| net weight | 0.983 kg | |
| base dimension | 104 x 162 mm | |
| height | 255 mm | |
| width | 104 mm | |
| depth | 180 mm | |
| colour | Grey (RAL 7035) | |
| voltage colour | Black |
| standards | EN 60309-1EN 60309-2 | |
|---|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 | |
| IK degree of protection | IK08 conforming to EN 62262 | |
| fire resistance | 850 °C conforming to IEC 60695-2-11 | |
| relative humidity | 50 % at 40 °C70 % at 30 °C90 % at 20 °C | |
| ambient air temperature for operation | 35 °C ( 86400 s ) |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| EU RoHS Directive | Pro-active compliance (Product out of EU RoHS legal scope) EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure |
| Warranty | 18 months |
|---|
