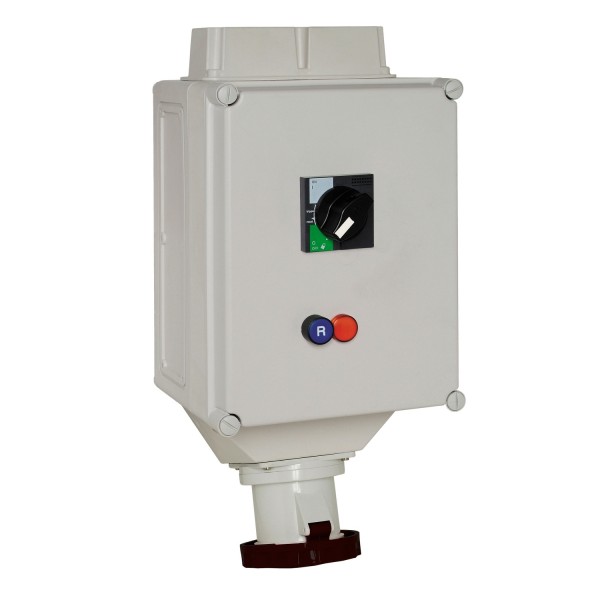

PratiKa interlocked socket - 63 A - 3P + E - 480...500 V AC - IP65

Ülevaaded: 0

Tootekood: 82485

Quick Overview

Saadavus: Tellimisel

1 189,57 € (ilma KM-ta)

Details

Main
range
PratiKa
product or component type
Interlocked socket
device short name
PratiKa socket
plug, socket category
Low voltage
poles description
3P + E
network type
AC
outlet standard
Industrial
Complementary
[In] rated current
63 A
[Ue] rated operational voltage
480...500 V
network frequency
50/60 Hz
protection type
Circuit breaker protection
plug, socket material
Housing: self-extinguishing engineering polymer
connections - terminals
Captive screws
cable cross section
16…95 mm²
cable entry
Cable gland
thread type
Pg 42
net weight
9.1 kg
height
640 mm
width
270 mm
depth
215 mm
colour
Grey (RAL 7035)
voltage colour
Black
Environment
standards
EN 60309-1
EN 60309-2
IP degree of protection
IP65 conforming to IEC 60529
IK degree of protection
IK08 conforming to EN 62262
fire resistance
960 °C conforming to IEC 60695-2-11
relative humidity
50 % at 40 °C
70 % at 30 °C
90 % at 20 °C
ambient air temperature for operation
35 °C ( 86400 s )
Contractual warranty
Warranty
18 months
