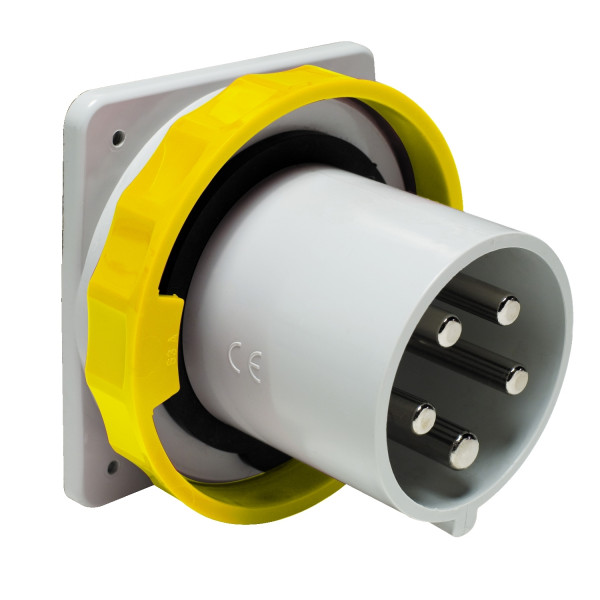

PratiKa plug - straight - 63A - 3P + E - 100...130 V AC - IP67

Details

Complementary
mounting mode	Panel-mounted
plug, socket, control station shape	Straight
[In] rated current	63 A
[Ue] rated operational voltage	100...130 V
network frequency	50/60 Hz
ground lug clockwise position	4 h
plug, socket material	Housing: self-extinguishing polymer
contacts material	Pins: nickel plated brass
connections - terminals	Captive screws
cable cross section	6…25 mm²
thread type	Pg 36
net weight	0.85 kg
base dimension	100 x 107 mm
height	265 mm
width	110 mm
depth	110 mm
colour	Grey (RAL 7035)
voltage colour	Yellow

Environment
standards	IEC 60309-2 IEC 60309-1
IP degree of protection	IP67 conforming to IEC 60529
IK degree of protection	IK08 conforming to EN 62262
fire resistance	850 °C conforming to IEC 60695-2-11
relative humidity	50 % at 40 °C 70 % at 30 °C 90 % at 20 °C
operating altitude	2000 m
ambient air temperature for operation	35 °C ( 86400 s ) -25…40 °C
